F90AD-SFR :  Adjustable face mills (used mainly for PCD/CBN inserts). The adjustable tools provide excellent surface finish and prolong insert life.


Facing   Shouldering   COOLANT

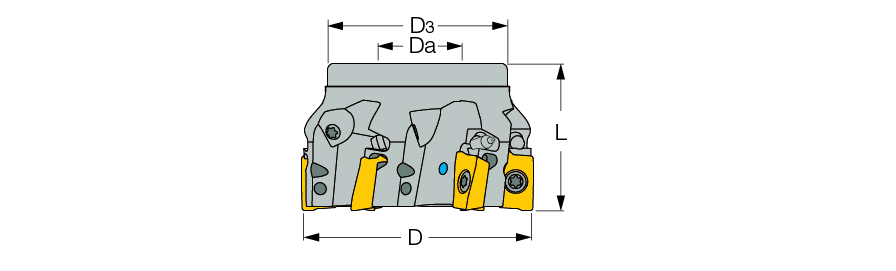

  Designation
D
Z
L
Da
ArborFor adaptation click on More Info
Kg		 RPM
max
  F90AD D050-04-22-SFR  50.00  4  40.00  22.00  A  0.30  23000
  F90AD D063-04-22-SFR  63.00  4  40.00  22.00  A  0.35  20600
  F90AD D063-06-22-SFR  63.00  6  40.00  22.00  A  0.48  20600
  F90AD D080-06-27-SFR  80.00  6  50.00  27.00  B  0.88  18200

These tools may be used also for regular HELI2000 AD.. 1505... inserts, for applications which require precise frontal edge adjustment.
