HTP-R-LN10 :  TNGPLUNGE, Shell mill plungers carrying tangentially clamped inserts with 4 cutting edges. 8 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom.


Shouldering   Facing   Side plunging   COOLANT

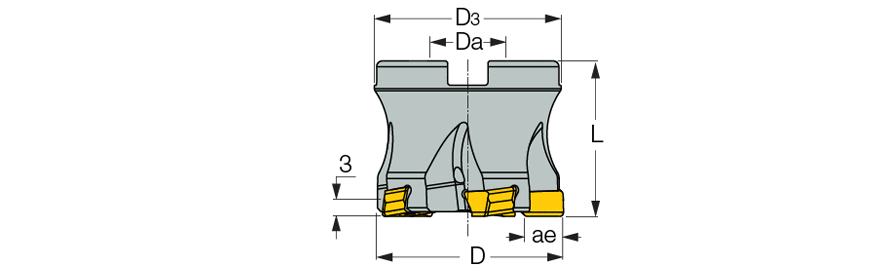

  Designation
D
ae
D3
Z
Da
L
ArborFor adaptation click on More Info
  HTP D040-4-16-R-LN10  40.00  8.0  38.00  4  16.00  40.00  A
  HTP D050-5-22-R-LN10  50.00  8.0  48.00  5  22.00  40.00  A
  HTP D052-5-22-R-LN10  50.00  8.0  48.00  5  22.00  40.00  A

For adaptation, click on "More Info".
