FF EWX-M-05 :  HELIDO UPFEED endmills with FLEXFIT threaded adaptation, for fast feed, carrying double-sided Inserts with 6 cutting edges.


Profiling   Plunging & recessing   Side plunging   Ramp down   Helical interpolation   Facing   COOLANT

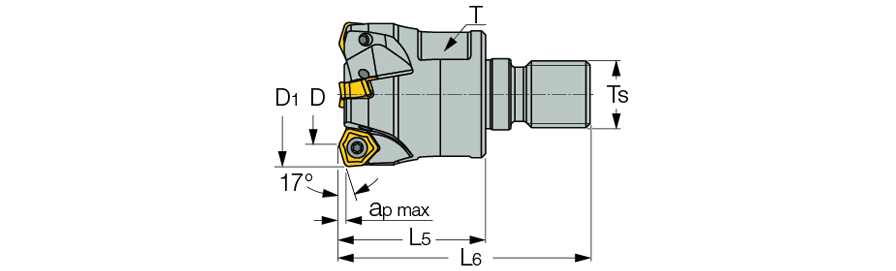

  Designation
D1
D
Z		 ap
max
L5
L6
Ts
Rd°
Kg
TClamping wrench size
  FF EWX D25-3-M12-05  25.0  15.00  3  1.00  30.00  52.00  M12  5.0  0.09  19.0
  FF EWX D32-4-M16-05  32.0  22.00  4  1.00  35.00  60.00  M16  4.0  0.17  25.0
  FF EWX D35-4-M16-05  35.0  25.00  4  1.00  35.00  60.00  M16  3.5  0.19  25.0
  FF EWX D40-5-M16-05  40.0  30.00  5  1.00  40.00  65.00  M16  2.8  0.26  25.0

apmax=1 mm; fzmax=1 mm/t; r=2.3 mm for programming
