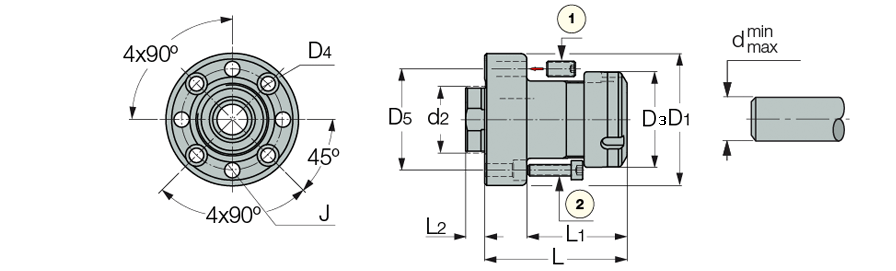

 ADJ ER NOSE :  Radial and angular adjustable collet chuck flanges. Cutting Conditions Machine Power


Center alignment devices
  Designation d2
min		 d2
max
L
L1
L2
D3
D1
D5
d
D4
J
C.Si
  ADJ ER32 NOSE  2.00  20.00  75.00  53.0  10.00  50.00  70.0  53.00  35.00  6.60  M6 -
