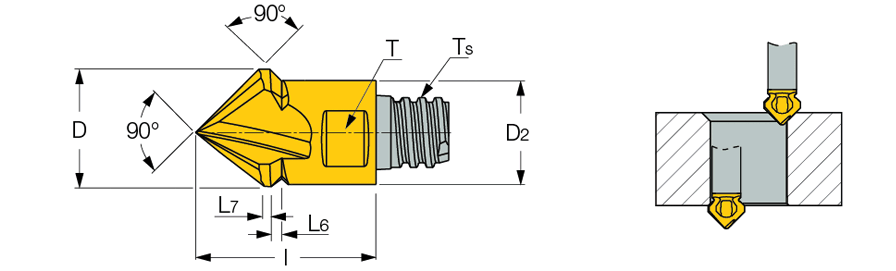

MM EDF :  MULTI-MASTER 3 flute interchangeable solid carbide heads, used for upper and bottom chamfering.


Countersinking   Bottom deburring
  Designation
D

D2

Z

L6

L7

l

Ts

  Grade
  MM EDF094-090-76-3T05  9.40  7.60  3  0.90  1.00  12.50  T05 IC908
  MM EDF116-090-95-3T06  11.60  9.60  3  1.00  1.00  16.50  T06 IC908


Suitable for pecking applications.
For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
