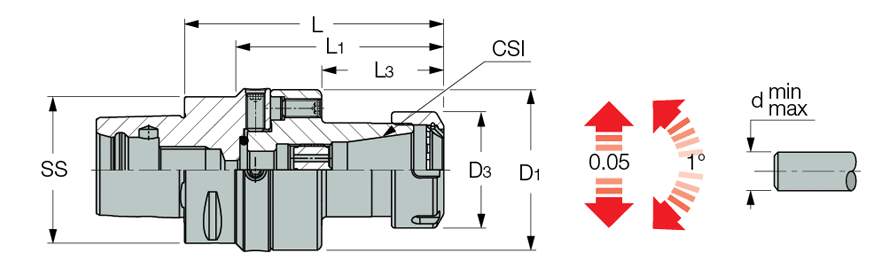

| ADJ C-ER : FINEFIT Center Alignment Shank and Base with a CAMFIX Adaptations. For specially tailored toolholders |
|
|
|
|
|
| Designation |
SS |
CSI |
d
min |
d
max |
D1 |
D3 |
L |
L1 |
L3 |
|
ADJ C5 ER32
|
50 |
ER32 |
2.0 |
20.0 |
70.0 |
50.00 |
115.00 |
95.0 |
52.50 |
|
ADJ C6 ER32
|
63 |
ER32 |
2.0 |
20.0 |
70.0 |
50.00 |
111.50 |
89.5 |
52.50 |
|
|
Radial adjustment 0.1 mm. Angular adjustment 1°.
|
 |
    |
|
|
|
