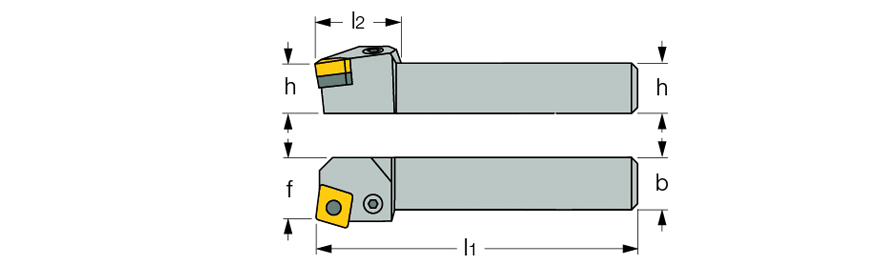

PCBNR/L :  Lever lock toolholders for the 100° corner of CNMG inserts.
 Right-hand shown

Ext. 100° diamond 75° approach
  Designation
h
b
l1
l2
f
Ga°
Gr°
  PCBNL 2525M-12  25.0  25.0  150.00  27.7  22.0  -6  -6
  PCBNR 2525M-12  25.0  25.0  150.00  27.7  22.0  -6  -6
  PCBNL 3232P-19  32.0  32.0  170.00  37.0  27.0  -6  -6
  PCBNR 3232P-19  32.0  32.0  170.00  37.0  27.0  -6  -6
  PCBNL 4040S-19  40.0  40.0  250.00  37.0  37.0  -6  -6
  PCBNR 4040S-19  40.0  40.0  250.00  37.0  37.0  -6  -6
