ADJ C# :  FINEFIT DIN 6499 ER Collet Chuck with a CAMFIX Adaptations.


HARDNESS 58-60  SURFACE FINISH N5

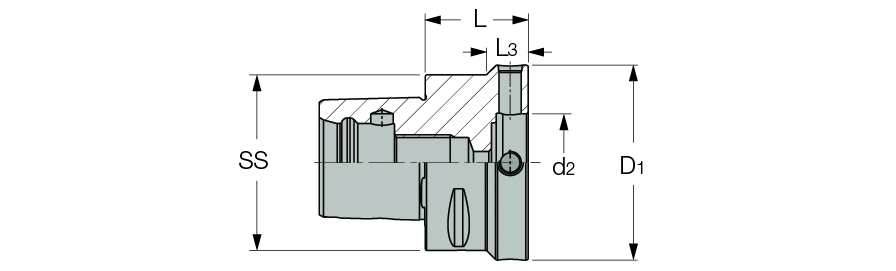

  Designation
SS
d2
D1
L
L3
  ADJ C5 D70  50  35.00  70.0  40.50  20.50
  ADJ C6 D70  63  35.00  70.0  37.00  15.00

Radial adjustment 0.1 mm. Angular adjustment 1°.
