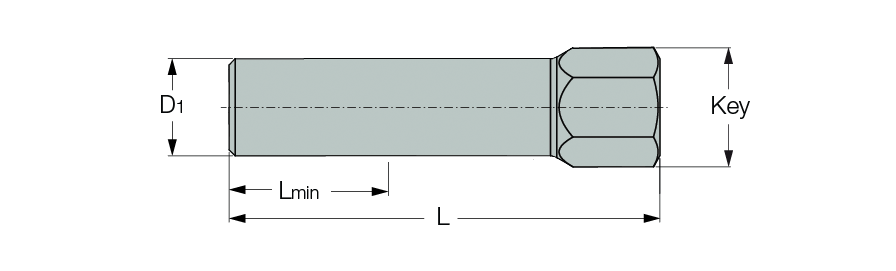

TEST BAR HYDRO :
Torque test bars for hydraulic chucks.
Designation
D1
L
Key
Nxcm
L
min
TEST BAR HYDRO 6
6.0
53.00
10.00
15
27.0
TEST BAR HYDRO 8
8.0
53.00
10.00
25
27.0
TEST BAR HYDRO 10
10.0
56.00
10.00
50
32.0
TEST BAR HYDRO 12
12.0
62.00
10.00
110
37.0
TEST BAR HYDRO 14
14.0
62.00
10.00
120
37.0
TEST BAR HYDRO 16
16.0
71.00
17.00
180
37.0
TEST BAR HYDRO 18
18.0
71.00
17.00
230
42.0
TEST BAR HYDRO 20
20.0
71.00
17.00
250
42.0
TEST BAR HYDRO 25
25.0
79.00
17.00
310
48.0
TEST BAR HYDRO 32
32.0
87.00
17.00
450
52.0
