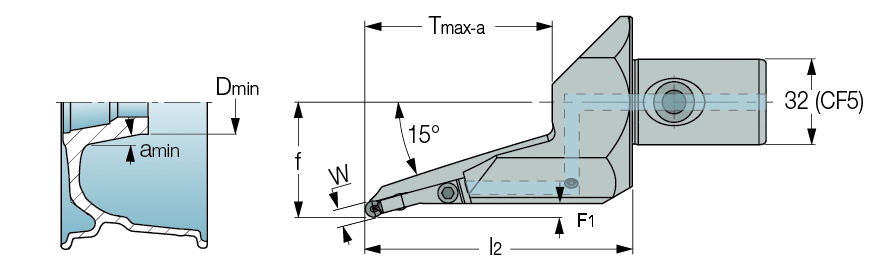

CF5 GHIUR-15A :  Internal machining heads with CLICKFIT adaptation for facing and internal machining of aluminum wheels (15° approach).


Int. Machining Aluminum Wheels   COOLANT
  Designation D
min
W
l2
Tmax-a
f
a°
F1
  CF5 GHIUR-15A-6  300.00  6.00  100.0  70.00  43.0  15  5.0
  CF5 GHIUR-15A-8  300.00  8.00  100.0  70.00  43.0  15  5.0

Upper jaw with hard coating to sustain chip deflection
