FF EWX-MM-04 :  HELIDO UPFEED endmills with MULTI-MASTER threaded adaptation, for fast feed, carrying double-sided Inserts with 6 cutting edges.


Profiling   Plunging & recessing   Side plunging   Ramp down   Helical interpolation   Facing   COOLANT

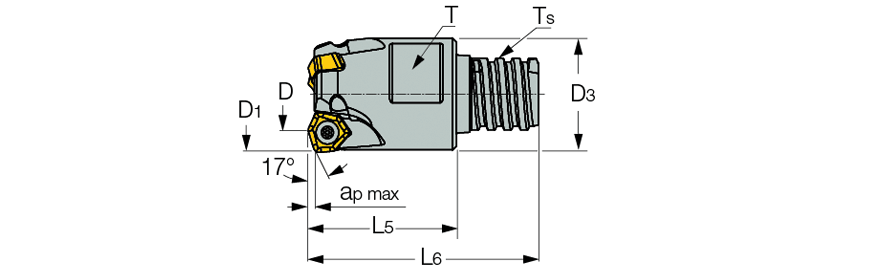

  Designation
D1
D
Z
D3
Ts
L5
L6
TClamping wrench size (should be ordered separately).		 ap
max
Rd°
Kg
  FF EWX D16-2-MMT10-04  16.0  8.60  2  15.20  T10  19.50  31.25  12.0  0.80  5.0  0.02
  FF EWX D20-3-MMT12-04  20.0  12.60  3  18.80  T12  25.00  38.80  15.0  0.80  4.8  0.05

Insert radius for programming r=1.9 mm
For tightening torque click on "More Info".
