PICCO-016/020(face grooving) : PICCO mini inserts for deep face grooving at Dmin 16/20 mm.

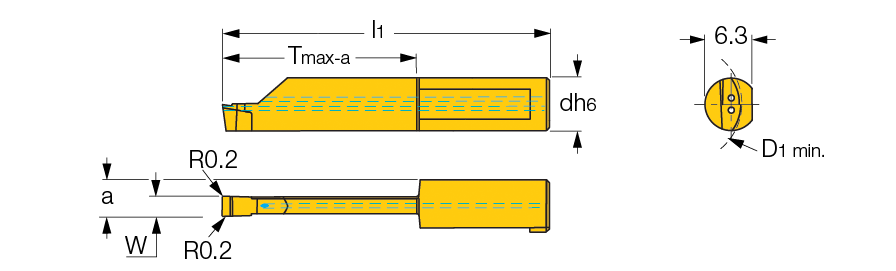

Right-hand shown

Designation	D1 min	W	Tmax-a	d	a	l1	R/L	ffg (min)	ffg (max)	Grade
PICCO R 016.0300-10	16.0	3.00	10.00	8.00	5.50	30.00	R	0.01	0.05	IC1008
PICCO R 016.0300-20	16.0	3.00	20.00	8.00	5.50	40.00	R	0.01	0.05	IC1008
PICCO R 016.0400-10	16.0	4.00	10.00	8.00	6.00	30.00	R	0.01	0.05	IC1008
PICCO R 016.0400-20	16.0	4.00	20.00	8.00	6.00	40.00	R	0.01	0.05	IC1008
PICCO R 020.0300-25	20.0	3.00	25.00	8.00	5.50	45.00	R	0.01	0.05	IC1008
PICCO R 020.0300-30	20.0	3.00	30.00	8.00	5.50	50.00	R	0.01	0.04	IC1008
PICCO R 020.0300-35	20.0	3.00	35.00	8.00	5.50	55.00	R	0.01	0.04	IC1008
PICCO R 020.0300-40	20.0	3.00	40.00	8.00	5.50	60.00	R	0.01	0.04	IC1008
PICCO R 020.0400-25	20.0	4.00	25.00	8.00	6.00	45.00	R	0.01	0.06	IC1008
PICCO R 020.0400-30	20.0	4.00	30.00	8.00	6.00	50.00	R	0.01	0.06	IC1008
PICCO R 020.0400-35	20.0	4.00	35.00	8.00	6.00	55.00	R	0.01	0.05	IC1008
PICCO R 020.0400-40	20.0	4.00	40.00	8.00	6.00	60.00	R	0.01	0.05	IC1008
PICCO R 020.0500-20	20.0	5.00	20.00	8.00	6.50	40.00	R	0.02	0.06	IC1008
PICCO R 020.0500-25	20.0	5.00	25.00	8.00	6.50	45.00	R	0.02	0.06	IC1008
PICCO R 020.0500-30	20.0	5.00	30.00	8.00	6.50	50.00	R	0.02	0.06	IC1008
PICCO R 020.0500-35	20.0	5.00	35.00	8.00	6.50	55.00	R	0.02	0.05	IC1008
PICCO R 020.0500-40	20.0	5.00	40.00	8.00	6.50	60.00	R	0.02	0.05	IC1008

All inserts have two coolant holes which may be used with coolant pressure up to 100 bars.
