PQLCR/L :

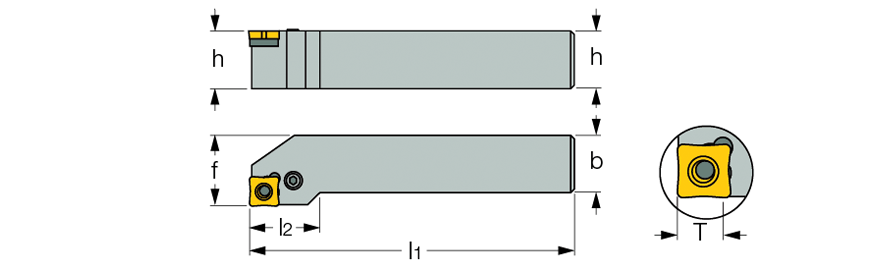

Lever lock toolholders for 80° positive 4-cornered inserts.
Right-hand shown
Designation
h
b
l1
l2
f
T
Ga°
Gr°
R/L
PQLCL 1616H-09
16.0
16.0
100.00
22.0
20.0
8.5
0
0
L
PQLCR 1616H-09
16.0
16.0
100.00
22.0
20.0
8.5
0
0
R
PQLCL 2020K-09
20.0
20.0
125.00
25.0
25.0
8.5
0
0
L
PQLCR 2020K-09
20.0
20.0
125.00
25.0
25.0
8.5
0
0
R
PQLCL 2525M-09
25.0
25.0
150.00
26.0
32.0
8.5
0
0
L
PQLCR 2525M-09
25.0
25.0
150.00
26.0
32.0
8.5
0
0
R
