HSK A-SEM...C :  Shell mill holders with coolant holes and DIN69893 form A HSK taper shanks. Symmetrical design, dynamically balanced for high RPM machining.


RUNOUT (EXTERNAL) 0.005  TAPER  HARDNESS 58-60  SURFACE FINISH N5  G2.5/HSK63=20000RPM @ HSK100=15000RPM  COOLANT

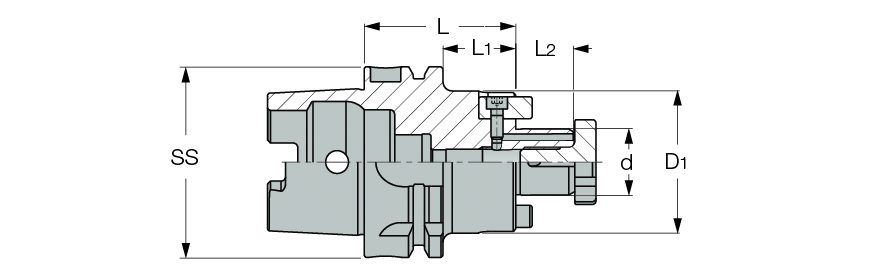

  Designation
SS
d
D1
L
L1
L2
Kg
  HSK A 63 SEM 16X 50 C  63  16.00  38.0  50.00  24.0  17.00  0.84
  HSK A 63 SEM 16X100 C  63  16.00  38.0  100.00  74.0  17.00  1.28
  HSK A 63 SEM 22X 50 C  63  22.00  47.0  50.00  24.0  19.00  0.97
  HSK A 63 SEM 22X100 C  63  22.00  47.0  100.00  74.0  19.00  1.68
  HSK A 63 SEM 27X 60 C  63  27.00  58.0  60.00  34.0  21.00  1.28
  HSK A 63 SEM 27X100 C  63  27.00  58.0  100.00  74.0  21.00  2.10
  HSK A 63 SEM 32X 60 C  63  32.00  66.0  60.00  34.0  24.00  1.38
  HSK A 100 SEM 16X 50 C  100  16.00  38.0  50.00  21.0  17.00  2.12
  HSK A 100 SEM 16X100 C  100  16.00  38.0  100.00  71.0  17.00  2.60
  HSK A 100 SEM 22X 50 C  100  22.00  47.0  50.00  21.0  19.00  1.50
  HSK A 100 SEM 22X100 C  100  22.00  47.0  100.00  71.0  19.00  2.95
  HSK A 100 SEM 27X 50 C  100  27.00  58.0  50.00  21.0  21.00  2.50
  HSK A 100 SEM 27X100 C  100  27.00  58.0  100.00  71.0  21.00  3.60
  HSK A 100 SEM 32X 50 C  100  32.00  66.0  50.00  21.0  24.00  2.60
  HSK A 100 SEM 32X100 C  100  32.00  66.0  100.00  71.0  24.00  4.62

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
Blanced to G2.5/
HSK A63=20,000 RPM
HSK A100=15,000 RPM
