PSKNR/L :  75° lead angle lever lock face turning tools for ISO negative square inserts.

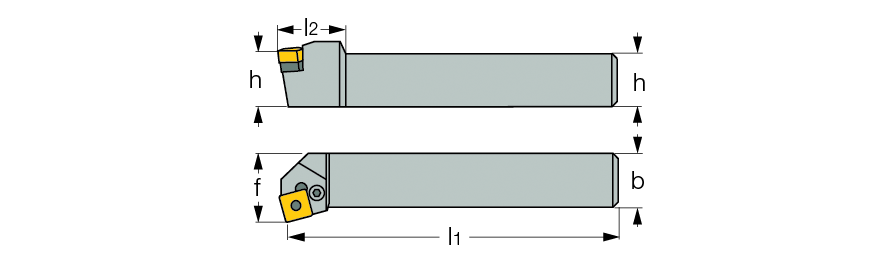

 Right-hand shown

Ext. 90° square face 75° appr'   Radial Turning
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  PSKNL 2525M-12  25.0  25.0  150.00  23.5  32.0  -6  -6  L
  PSKNR 2525M-12  25.0  25.0  150.00  23.5  32.0  -6  -6  R
