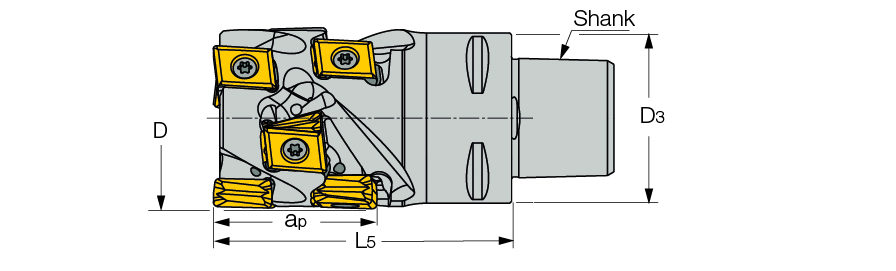

T490 LNK-13-C# :  Extended flute endmills with CAMFIX shanks using T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, 13 mm long cutting edges (HELITANG T490 Line).


CAMFIX ISO 26623-1   Shouldering   COOLANT
  Designation
D
ap
Zeff
Z
L1
L5
SS
Kg
  T490 LNKD40-36-2-L90C6-13  40.00  36.00  2  6  64.0  90.00  63  0.32
  T490 LNKD50-47-3L100C6-13  50.00  47.00  3  12  76.0  100.00  63  1.56
