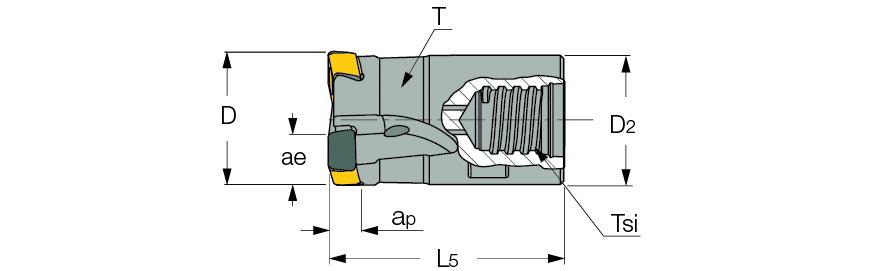

TS HTP :  TANGPLUNGE side plungers with SHANK-MASTER threaded connection carrying tangentially clamped inserts with 4 cutting edges.


Shouldering   Side plunging   Facing   COOLANT
  Designation
D
Z
D2
L5
ae
ap
Tsi
TClamping wrench size
Kg
  TS HTP D17/.67-2-T10-LN06  17.00  2  15.20  30.00  4.5  2.50  T10  13.0  0.03
  TS HTP D21/.83-3-T12-LN06  21.00  3  19.20  35.00  5.0  2.50  T12  16.0  0.05
