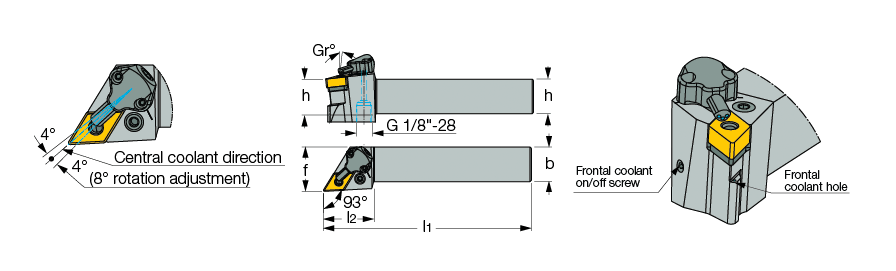

PDJNR/L-15-JHP :  Lever lock toolholder for 55° negative inserts with channels for high pressure coolant.


Ext. 55° diamond 93° approach   300 BAR MAX.
  Designation
b
h
l1
l2
f
Ga°
Gr°
  PDJNL 2525M-15-JHP  25.0  25.0  150.00  36.0  32.0  -6  -6
  PDJNR 2525M-15-JHP  25.0  25.0  150.00  36.0  32.0  -6  -6

For more details click on "More Info"
