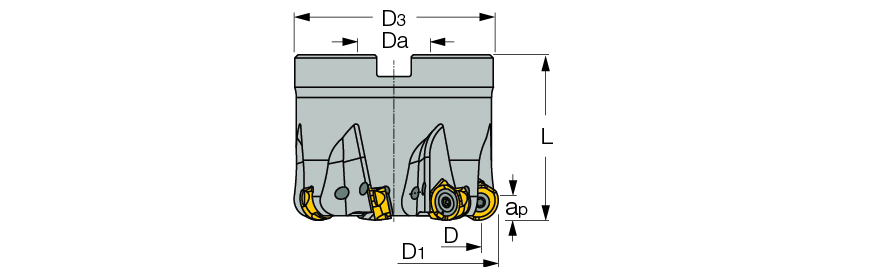

H400 FR-10 :  Face mills carrying double-sided inserts with four 5 mm radius cutting edges (HELIDO ROUND H400 LINE).


Profiling   Facing   Helical interpolation   Ramp down   COOLANT
  Designation
D1
D
Z
ap
L
Da
Rd°
ArborFor adaptation, click on More Info.
Kg
  H400 FR D040-06-16-10  40.0  30.00  6  7.50  35.00  16.00  2.6  A  0.18
  H400 FR D050-07-22-10  50.0  40.00  7  7.50  40.00  22.00  1.9  A  0.33
