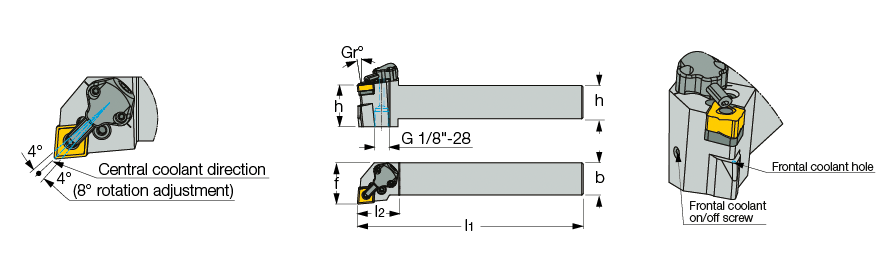

PCLNR/L-12-JHP :  Lever lock toolholders for 80° negative rhombic inserts with channels for high pressure coolant.


Ext. 80° diamond 95° approach   Radial Turning   300 BAR MAX.
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  PCLNL 2525M-12-JHP  25.0  25.0  150.00  33.0  32.0  -6  -6  L
  PCLNR 2525M-12-JHP  25.0  25.0  150.00  33.0  32.0  -6  -6  R
  PCLNL 3232P-12-JHP  32.0  32.0  170.00  33.0  32.0  -6  -6  L
