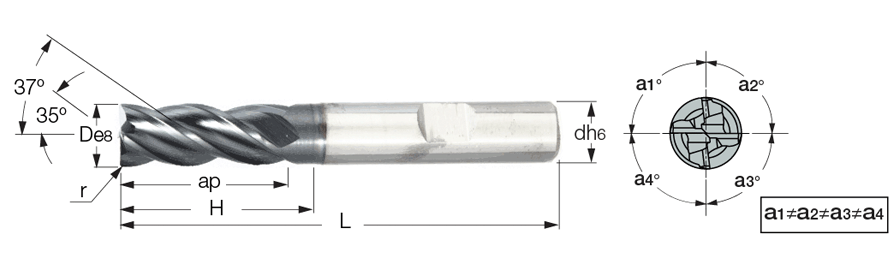

EC-H4XL-CFR (relieved neck) :


Rebaixamento   Fresa circular   Descida de Rampa   Interpolação em hélice
  Designation
D
d
ap
H
L
Flute
r
Rd°
ShankC-Cylindrical, W-Weldon		 fz
(min)		 fz
(max)
  Grade
  EC-H4XL 06-12/25C06CFR.2  6.00  6.00  12.00  25.00  61.00  4  0.20  5.0  C  0.03  0.06 IC900
  EC-H4XL 06-12/25W06CFR.2  6.00  6.00  12.00  25.00  61.00  4  0.20  5.0  W  0.03  0.06 IC900
  EC-H4XL 08-16/32C08CFR.4  8.00  8.00  16.00  32.00  68.00  4  0.40  5.0  C  0.03  0.08 IC900
  EC-H4XL 08-16/32W08CFR.4  8.00  8.00  16.00  32.00  68.00  4  0.40  5.0  W  0.03  0.08 IC900
  EC-H4XL 10-20/40C10CFR.5  10.00  10.00  20.00  40.00  80.00  4  0.50  5.0  C  0.03  0.09 IC900
  EC-H4XL 10-20/40W10CFR.5  10.00  10.00  20.00  40.00  80.00  4  0.50  5.0  W  0.03  0.09 IC900
  EC-H4XL 12-24/50C12CFR.6  12.00  12.00  24.00  50.00  95.00  4  0.60  5.0  C  0.04  0.10 IC900
  EC-H4XL 12-24/50W12CFR.6  12.00  12.00  24.00  50.00  95.00  4  0.60  5.0  W  0.04  0.10 IC900
  EC-H4XL 16-32/64C16CFR.8  16.00  16.00  32.00  64.00  115.00  4  0.80  5.0  C  0.05  0.11 IC900
  EC-H4XL 16-32/64W16CFR.8  16.00  16.00  32.00  64.00  115.00  4  0.80  5.0  W  0.05  0.11 IC900
  EC-H4XL 20-40/75C20CFR1.0  20.00  20.00  40.00  75.00  125.00  4  1.00  5.0  C  0.05  0.11 IC900
  EC-H4XL 20-40/75W20CFR1.0  20.00  20.00  40.00  75.00  125.00  4  1.00  5.0  W  0.05  0.11 IC900
