E/S-SDUCR/L :

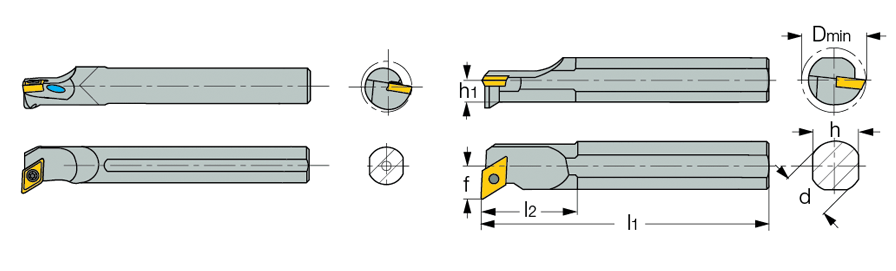

Screw lock boring bars for 55° rhombic inserts with 7° clearance. S - Steel shank; E - Carbide shank with coolant hole.
Right-hand shown
Designation
d
l1
l2
h
h1
f
D
min
Ga°
Gr°
Shank
m.
Coolant
R/L
E10M SDUCL-07
10.00
150.00
-
9.2
5.1
8.0
14.00
3
-7
C
Y
L
E10M SDUCR-07
10.00
150.00
-
9.2
5.1
8.0
14.00
3
-7
C
Y
R
E12P SDUCL-07
12.00
170.00
-
11.0
5.5
9.0
16.00
0
-7
C
Y
L
E12P SDUCR-07
12.00
170.00
-
11.0
5.5
9.0
16.00
0
-7
C
Y
R
E16R SDUCL-07
16.00
200.00
-
15.0
8.1
11.0
20.00
0
-8
C
Y
L
E16R SDUCR-07
16.00
200.00
-
15.0
8.1
11.0
20.00
0
-8
C
Y
R
S10L SDUCL-07
10.00
140.00
18.0
9.2
5.0
8.0
14.00
-3
-9
S
-
L
S10L SDUCR-07
10.00
140.00
18.0
9.2
5.0
8.0
14.00
-3
-9
S
-
R
S12M SDUCL-07
12.00
150.00
20.0
12.0
5.5
9.0
16.00
-7
-9
S
-
L
S12M SDUCR-07
12.00
150.00
20.0
12.0
5.5
9.0
16.00
-7
-9
S
-
R
S16Q SDUCL-07
16.00
180.00
25.0
15.0
8.0
11.0
20.00
0
-8
S
-
L
S16Q SDUCR-07
16.00
180.00
25.0
15.0
8.0
11.0
20.00
0
-8
S
-
R
S20R SDUCL-11
20.00
200.00
50.0
18.0
8.5
13.0
25.00
0
-6
S
-
L
S20R SDUCR-11
20.00
200.00
50.0
18.0
8.5
13.0
25.00
0
-6
S
-
R
S25S SDUCL-11
25.00
250.00
55.0
23.0
12.0
17.0
32.00
0
-5
S
-
L
S25S SDUCR-11
25.00
250.00
55.0
23.0
12.0
17.0
32.00
0
-5
S
-
R
