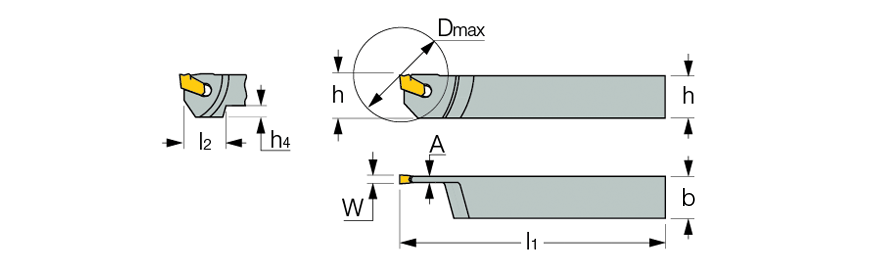

| SGAFR/L : SELF-GRIP, integral shank tool for Swiss automatic machines. |
  |
|
|
|
|
| Designation |
h |
W
min |
W
max |
D
max |
h1 |
b |
A |
l1 |
l2 |
h4 |
R/L |
|
SGAFL 8-1.2-D18
|
8.0 |
1.20 |
1.20 |
18.0 |
8.0 |
8.0 |
0.90 |
120.00 |
12.0 |
4.0 |
L |
|
SGAFR 8-1.2-D18
|
8.0 |
1.20 |
1.20 |
18.0 |
8.0 |
8.0 |
0.20 |
120.00 |
12.0 |
4.0 |
R |
|
SGAFL 8-1.6
|
8.0 |
1.60 |
1.60 |
26.0 |
8.0 |
8.0 |
1.20 |
120.00 |
14.0 |
4.0 |
L |
|
SGAFR 8-1.6
|
8.0 |
1.60 |
1.60 |
26.0 |
8.0 |
8.0 |
0.20 |
120.00 |
14.0 |
4.0 |
R |
|
SGAFL 10-1.2-D18
|
10.0 |
1.20 |
1.20 |
18.0 |
10.0 |
10.0 |
0.90 |
120.00 |
12.0 |
2.0 |
L |
|
SGAFR 10-1.2-D18
|
10.0 |
1.20 |
1.20 |
18.0 |
10.0 |
10.0 |
0.90 |
120.00 |
12.0 |
2.0 |
R |
|
SGAFL 10-1.6
|
10.0 |
1.60 |
1.60 |
28.0 |
10.0 |
10.0 |
1.20 |
120.00 |
15.0 |
2.0 |
L |
|
SGAFR 10-1.6
|
10.0 |
1.60 |
1.60 |
28.0 |
10.0 |
10.0 |
1.20 |
120.00 |
15.0 |
2.0 |
R |
|
SGAFL 10-2
|
10.0 |
1.80 |
2.69 |
30.0 |
10.0 |
10.0 |
1.60 |
120.00 |
17.0 |
6.0 |
L |
|
SGAFR 10-2
|
10.0 |
1.80 |
2.69 |
30.0 |
10.0 |
10.0 |
1.60 |
120.00 |
17.0 |
6.0 |
R |
|
SGAFL 12-1.2-D18
|
12.0 |
1.20 |
1.20 |
18.0 |
12.0 |
12.0 |
0.90 |
140.00 |
12.0 |
- |
L |
|
SGAFR 12-1.2-D18
|
12.0 |
1.20 |
1.20 |
18.0 |
12.0 |
12.0 |
0.90 |
140.00 |
12.0 |
- |
R |
|
SGAFL 12-1.6
|
12.0 |
1.60 |
1.60 |
30.0 |
12.0 |
12.0 |
1.20 |
140.00 |
- |
- |
L |
|
SGAFR 12-1.6
|
12.0 |
1.60 |
1.60 |
30.0 |
12.0 |
12.0 |
1.20 |
140.00 |
- |
- |
R |
|
SGAFL 12-2
|
12.0 |
1.80 |
2.69 |
30.0 |
12.0 |
12.0 |
1.60 |
140.00 |
17.0 |
4.0 |
L |
|
SGAFR 12-2
|
12.0 |
1.80 |
2.69 |
30.0 |
12.0 |
12.0 |
1.60 |
140.00 |
17.0 |
4.0 |
R |
|
SGAFL 14-1.2-D18
|
14.0 |
1.20 |
1.20 |
18.0 |
14.0 |
14.0 |
0.90 |
140.00 |
12.0 |
- |
L |
|
SGAFR 14-1.2-D18
|
14.0 |
1.20 |
1.20 |
18.0 |
14.0 |
14.0 |
0.90 |
140.00 |
12.0 |
- |
R |
|
SGAFL 14-1.6
|
14.0 |
1.60 |
1.60 |
35.0 |
14.0 |
14.0 |
1.20 |
140.00 |
- |
- |
L |
|
SGAFR 14-1.6
|
14.0 |
1.60 |
1.60 |
35.0 |
14.0 |
14.0 |
1.20 |
140.00 |
- |
- |
R |
|
SGAFL 14-2
|
14.0 |
1.80 |
2.69 |
35.0 |
14.0 |
14.0 |
1.60 |
140.00 |
20.0 |
2.0 |
L |
|
SGAFR 14-2
|
14.0 |
1.80 |
2.69 |
35.0 |
14.0 |
14.0 |
1.60 |
140.00 |
20.0 |
2.0 |
R |
|
SGAFL 16-2
|
16.0 |
1.80 |
2.69 |
36.0 |
16.0 |
16.0 |
1.60 |
140.00 |
- |
- |
L |
|
SGAFR 16-2
|
16.0 |
1.80 |
2.69 |
36.0 |
16.0 |
16.0 |
1.60 |
140.00 |
- |
- |
R |

|
|
|
|
