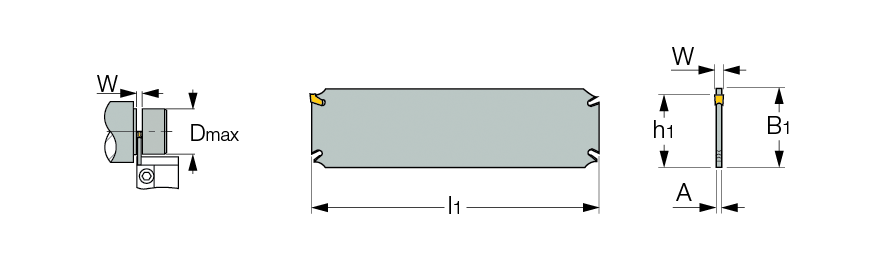

SGFH (Four-Pockets) :  SELF-GRIP, parting and grooving, four-pocket blades.


Parting   Ext. Grooving
  Designation
B1		 W
min		 W
max
A
l1
h1		 D
max
  SGFH 100-9  100.0  9.50  9.50  8.00  460.00  92.5  450.0
  SGFH 100-12  100.0  12.70  12.70  11.10  460.00  92.5  450.0
  SGFH 150-9  150.0  9.50  9.50  8.00  600.00  142.5  600.0
  SGFH 150-12  150.0  12.70  12.70  11.10  610.00  142.5  600.0
