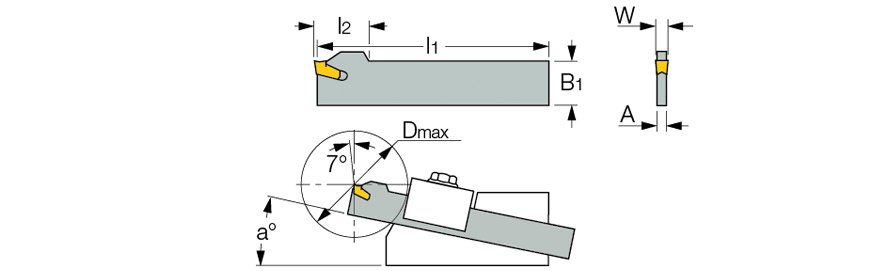

| SGFS : Replacement SELF-GRIP blades for HSS and brazed parting tools. |
|
|
|
|
|
| Designation |
W
min |
W
max |
D
max |
a° |
A |
l2 |
l1 |
B1 |
SGFS 0-17-2
|
1.80 |
2.69 |
35.0 |
0 |
1.60 |
15.0 |
110.00 |
17.1 |
|
SGFS 0-17-3
|
2.70 |
3.53 |
60.0 |
0 |
2.40 |
16.0 |
110.00 |
17.1 |
|
SGFS 4-17-2
|
1.80 |
2.69 |
35.0 |
4 |
1.60 |
18.0 |
110.00 |
17.1 |
|
SGFS 4-17-3
|
2.70 |
3.53 |
60.0 |
4 |
2.40 |
20.0 |
110.00 |
17.1 |
|
SGFS 4-17-4
|
3.54 |
4.52 |
60.0 |
4 |
0.20 |
20.0 |
110.00 |
17.1 |
|
SGFS 5-22-2
|
1.80 |
2.69 |
51.0 |
5 |
1.60 |
19.0 |
150.00 |
22.2 |
|
SGFS 5-22-3
|
2.70 |
3.53 |
76.0 |
5 |
2.40 |
20.0 |
150.00 |
22.2 |
|
SGFS 5-22-4
|
3.54 |
4.52 |
79.0 |
5 |
3.20 |
20.0 |
150.00 |
22.2 |
|
SGFS 5-28-4
|
3.54 |
4.52 |
102.0 |
2 |
3.20 |
21.0 |
150.00 |
28.5 |
|
SGFS 5-28-5
|
4.53 |
5.50 |
114.0 |
5 |
4.00 |
20.0 |
150.00 |
28.5 |
|
|
|
 |
    |
|
|
|
