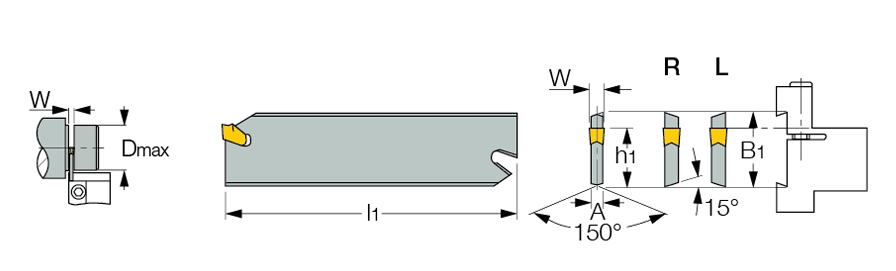

SGIH/R/L :
Blades for parting and grooving with SELF-GRIP inserts (without a stopper).
Designation
B1
W
min
W
max
A
l1
h1
D
max
SGIH 19-2
19.0
2.20
2.40
1.60
86.00
15.7
40.0
SGIH 26-2
26.0
2.20
2.40
1.60
110.00
21.4
50.0
SGIH 26-3
26.0
3.10
3.10
2.40
110.00
21.4
75.0
SGIH 26-4
26.0
4.10
4.10
3.20
110.00
21.4
80.0
SGIH 26-5
26.0
4.80
5.10
4.00
110.00
21.4
80.0
SGIH 26-6
26.0
6.40
6.40
5.20
110.00
21.4
80.0
SGIH 32-2
32.0
2.20
2.40
1.60
150.00
25.0
40.0
SGIH 32-3
32.0
3.10
3.10
2.40
150.00
25.0
100.0
SGIH 32-4
32.0
4.10
4.10
3.20
150.00
25.0
100.0
SGIH 32-5
32.0
4.80
5.10
4.00
150.00
25.0
120.0
SGIH 32-6
32.0
6.40
6.40
5.20
150.00
25.0
120.0
SGIH 32-8
32.0
8.00
8.00
6.80
150.00
25.0
140.0
SGIHL 32-8
32.0
8.00
8.00
6.80
150.00
25.0
120.0
SGIHR 32-8
32.0
8.00
8.00
6.80
150.00
25.0
120.0
SGIH 32-9
32.0
9.60
9.60
8.00
150.00
25.0
140.0
SGIHL 32-9
32.0
9.60
9.60
8.00
150.00
25.0
140.0
SGIHR 32-9
32.0
9.60
9.60
8.00
150.00
25.0
140.0
SGIH 52-8
52.6
8.00
8.00
6.80
190.00
45.0
190.0
SGIH 53-8
52.6
8.00
8.00
6.80
260.00
45.0
220.0
SGIH 52-9
52.6
9.60
9.60
8.00
190.00
45.0
190.0
SGIH 53-9
52.6
9.60
9.60
8.00
260.00
45.0
250.0
SGIH 100-9
100.0
9.60
9.60
8.00
450.00
92.5
450.0
