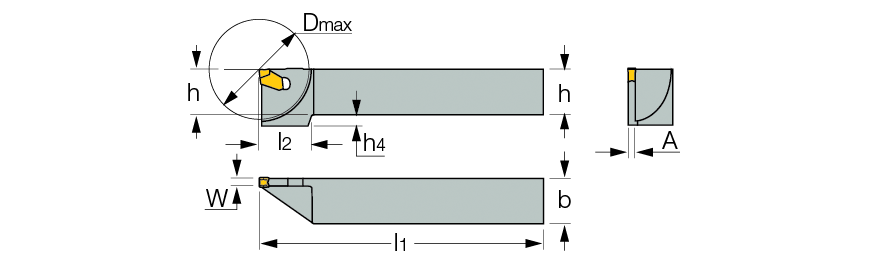

SGTFR/L-D :
Self-Grip, Reinforced tool for parting & grooving.
Designation
h
W
min
W
max
D
max
h1
b
A
l1
l2
h4
R/L
SGTFL 1212-2D 30
12.0
1.80
2.69
30.0
12.0
12.0
1.70
150.00
17.0
4.0
L
SGTFR 1212-2D 30
12.0
1.80
2.69
30.0
12.0
12.0
1.70
150.00
17.0
4.0
R
SGTFR 1212-3D 32
12.0
2.70
3.53
32.0
12.0
12.0
2.40
150.00
18.0
6.0
R
SGTFL 1616-3D 35
16.0
2.70
3.35
35.0
16.0
16.0
2.40
110.00
18.0
4.0
L
SGTFR 1616-3D 35
16.0
2.70
3.35
35.0
16.0
16.0
2.40
110.00
18.0
4.0
R
SGTFL 1616-4D 35
16.0
3.54
4.52
35.0
16.0
16.0
3.30
110.00
18.0
4.0
L
SGTFR 1616-4D 35
16.0
3.54
4.52
35.0
16.0
16.0
3.30
110.00
18.0
4.0
R
SGTFL 2020-3D 45
20.0
2.70
3.53
45.0
20.0
20.0
2.40
125.00
23.0
5.0
L
SGTFR 2020-3D 45
20.0
2.70
3.53
45.0
20.0
20.0
2.40
125.00
23.0
5.0
R
SGTFL 2020-4D 45
20.0
3.54
4.52
45.0
20.0
20.0
3.30
125.00
23.0
5.0
L
SGTFR 2020-4D 45
20.0
3.54
4.52
45.0
20.0
20.0
3.30
125.00
23.0
5.0
R
