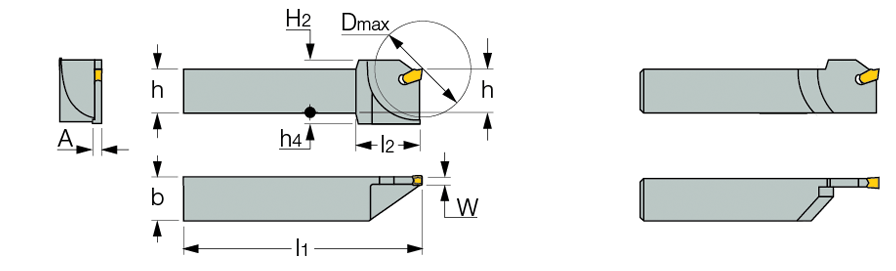

SGTHR/L :
Self-Grip, Reinforced integral shank tool for parting & grooving.
Designation
h
W
min
W
max
D
max
h1
b
A
l1
l2
H2
R/L
SGTHL 10-2
10.0
2.00
2.40
28.0
10.0
10.0
1.60
86.00
18.0
19.0
L
SGTHL 12-2
12.0
2.00
2.40
30.0
12.0
10.0
1.60
110.00
18.0
19.0
L
SGTHR 12-2
12.0
2.00
2.40
30.0
12.0
10.0
1.60
110.00
18.0
19.0
R
SGTHL 12-3
12.0
3.10
3.10
32.0
12.0
10.0
2.40
110.00
21.0
21.0
L
SGTHR 12-3
12.0
3.10
3.10
32.0
12.0
10.0
2.40
110.00
21.0
21.0
R
SGTHL 16-2
16.0
2.00
2.40
30.0
16.0
10.0
1.60
110.00
18.0
19.0
L
SGTHR 16-2
16.0
2.00
2.40
30.0
16.0
10.0
1.60
110.00
18.0
19.0
R
SGTHL 16-3
16.0
3.10
3.10
32.0
16.0
12.0
2.40
110.00
20.0
24.0
L
SGTHR 16-3
16.0
3.10
3.10
32.0
16.0
12.0
2.40
110.00
20.0
24.0
R
SGTHR 16-4
16.0
4.10
4.10
34.0
16.0
12.0
3.20
110.00
21.0
24.0
R
SGTHL 2020-3
20.0
3.10
3.10
45.0
20.0
20.0
2.40
120.00
25.0
25.0
L
SGTHR 2020-3
20.0
3.10
3.10
45.0
20.0
20.0
2.40
120.00
25.0
25.0
R
SGTHL 2020-4
20.0
4.10
4.10
60.0
20.0
20.0
3.00
120.00
33.0
25.0
L
SGTHR 2020-4
20.0
4.10
4.10
60.0
20.0
20.0
3.00
120.00
33.0
25.0
R
SGTHL 2525-3
25.0
3.10
3.10
52.0
25.0
25.0
2.40
150.00
25.0
30.0
L
SGTHR 2525-3
25.0
3.10
3.10
52.0
25.0
25.0
2.40
150.00
25.0
30.0
R
SGTHL 2525-4
25.0
4.10
4.10
62.0
25.0
25.0
3.20
150.00
30.0
30.0
L
SGTHR 2525-4
25.0
4.10
4.10
62.0
25.0
25.0
3.20
150.00
30.0
30.0
R
SGTHL 2525-5
25.0
4.80
5.10
75.0
25.0
25.0
4.00
150.00
34.0
30.0
L
SGTHR 2525-5
25.0
4.80
5.10
75.0
25.0
25.0
4.00
150.00
34.0
30.0
R
