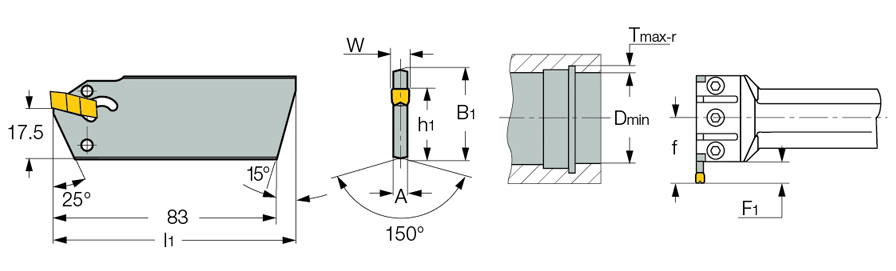

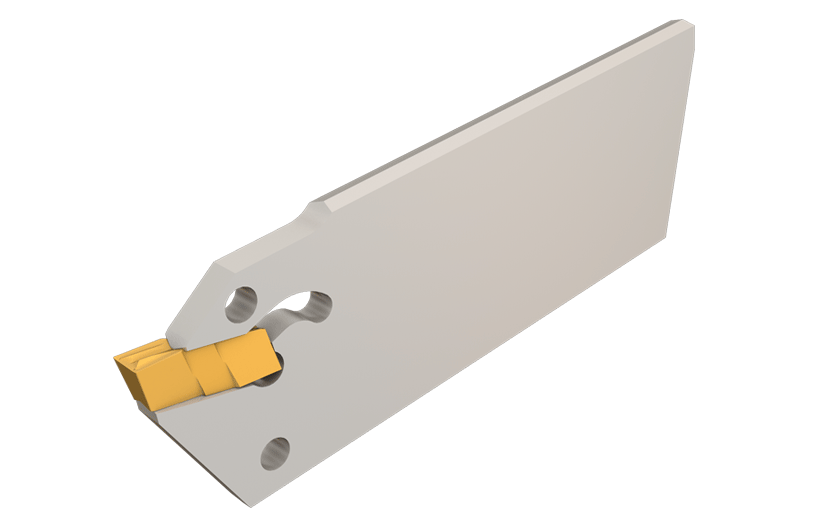

 CGHN 32-DGM :  Internal single-ended grooving and turning blades, using self clamped inserts. Cutting Conditions Machine Power
 Tmax-r varies in conformance with overhang (T blade) and depends on bore diameter D.


Int. Profiling   Int. Threading (Grip)   Int. Groov & Turn   Int. Grooving
  Designation W
min		 W
max
A
fmin
Tmin
fmax
Tmax
h1
l1
B1
  CGHN 32-3DGM  2.80  4.00  2.40  53.0  24.0  59.0  30.0  24.8  90.00  32.0
  CGHN 32-4DGM  3.50  5.00  3.20  53.0  24.0  59.0  30.0  24.8  90.00  32.0
  CGHN 32-5DGM  4.40  6.40  4.00  53.0  24.0  59.0  30.0  24.8  90.00  32.0
  CGHN 32-6DGM  5.60  6.40  5.20  53.0  24.0  59.0  30.0  24.8  90.00  32.0
