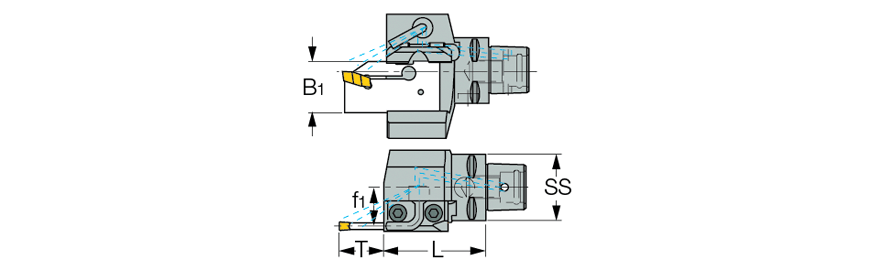

C#-TBU :  Blocks with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks for parting and grooving blades.
 Right-hand shown
T= See specific blade dimensions

COOLANT
  Designation
SS
f1
L
B1
R/L
  C4 TBU-32L  40  21.0  60.00  32.0  L
  C4 TBU-32R  40  21.0  60.00  32.0  R
  C5 TBU-32L  50  30.0  64.00  32.0  L
  C5 TBU-32R  50  30.0  64.00  32.0  R
  C6 TBU-32L  63  38.0  70.00  32.0  L
  C6 TBU-32R  63  38.0  70.00  32.0  R
  C8 TBU-32R  80  43.0  80.00  32.0  R
