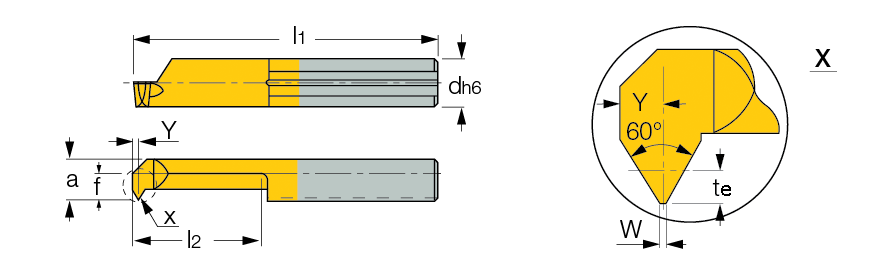

PICCO R/L-ISO-THREAD :
Mini-carbide-bars for ISO full profile internal thread turning. Dmin 4mm.
Designation
d
Pitch
te
w
Y
f
a
l3
l1
D
min
Grade
PICCO L 004.0205-15
4.00
0.50
0.30
0.06
0.35
1.5
3.50
14.0
30.00
4.00
IC228
PICCO R 003.0105-8
4.00
0.50
0.27
0.06
0.33
0.3
2.30
8.0
22.00
2.40
IC908
PICCO R 004.0105-10
4.00
0.50
0.27
0.06
0.44
1.0
3.00
10.0
24.00
3.20
IC908
PICCO R 004.0205-15
4.00
0.50
0.30
0.06
0.35
1.5
3.50
14.0
30.00
4.00
IC228
PICCO L 005.0205-15
5.00
0.50
0.30
0.06
0.35
1.9
4.40
14.0
30.00
5.00
IC228
PICCO R 005.0205-15
5.00
0.50
0.30
0.06
0.35
1.9
4.40
14.0
30.00
5.00
IC228
PICCO L 005.0407-15
5.00
0.75
0.40
0.90
0.45
1.9
4.40
14.0
30.00
5.00
IC228
PICCO R 005.0407-15
5.00
0.75
0.40
0.90
0.45
1.9
4.40
14.0
30.00
5.00
IC228
PICCO L 005.0510-15
5.00
1.00
0.60
0.12
0.55
1.9
4.40
14.0
30.00
4.80
IC228
PICCO R 005.0510-15
5.00
1.00
0.60
0.12
0.55
1.9
4.40
14.0
30.00
4.80
IC228
PICCO L 006.0510-15
6.00
1.00
0.60
0.12
0.55
2.3
5.30
14.0
30.00
6.00
IC228
PICCO R 006.0510-15
6.00
1.00
0.60
0.12
0.55
2.3
5.30
14.0
30.00
6.00
IC228
PICCO L 006.0612-15
6.00
1.25
0.70
0.15
0.65
2.3
5.30
14.0
30.00
6.00
IC228
PICCO R 006.0612-15
6.00
1.25
0.70
0.15
0.65
2.3
5.30
14.0
30.00
6.00
IC228
PICCO L 006.0815-15
6.00
1.50
0.80
0.18
0.75
2.3
5.30
14.0
30.00
6.00
IC228
PICCO R 006.0815-15
6.00
1.50
0.80
0.18
0.75
2.3
5.30
14.0
30.00
6.00
IC228
PICCO R 007.0815-15
6.00
1.50
0.80
0.18
0.75
2.7
6.20
14.0
30.00
7.00
IC228
PICCO L 007.0815-15
7.00
1.50
0.80
0.18
0.75
2.7
6.20
14.0
30.00
7.00
IC228
