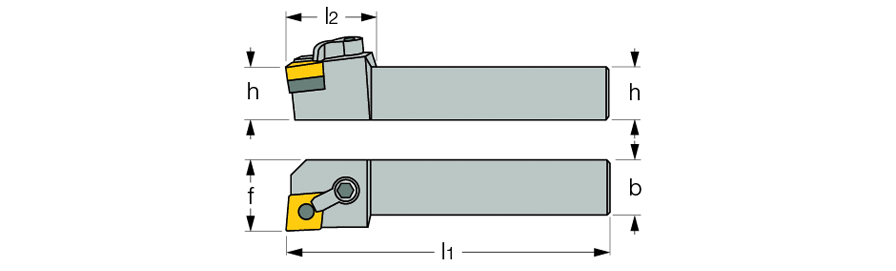

MCLNR/L :  Pin and clamp toolholders for 80° negative rhombic inserts.
 Right-hand shown
 Left-hand shown
Ext. 80° diamond 95° approach   Radial Turning
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
Insert
  MCLNR 2525M-16  25.0  25.0  150.00  30.0  32.0  -6  -6  R  CNMG 1606..
  MCLNL 3232P-19  32.0  32.0  170.00  35.0  40.0  -6  -6  L  CNMG 1906..
