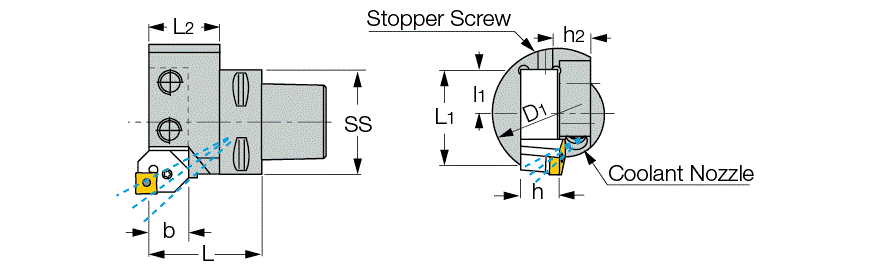

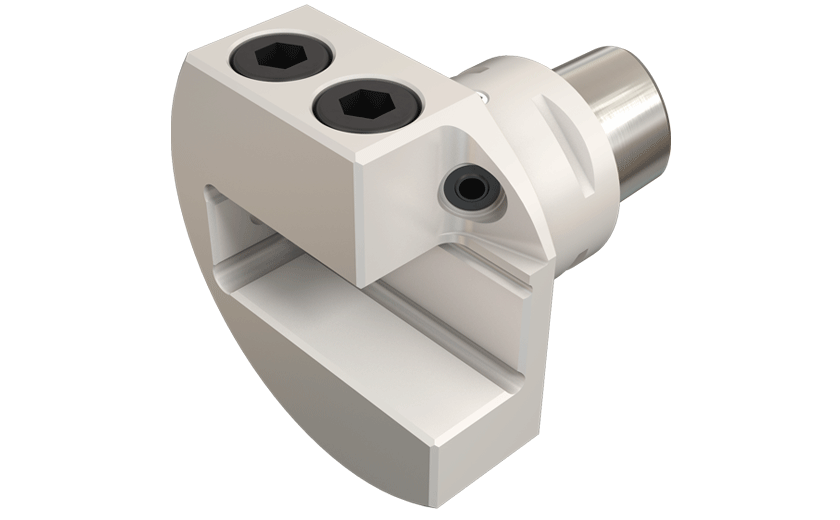

C#-ADE : Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external, square-shank tools.

Left-hand shown

Right-hand shown

Designation	SS	F1	l2	f	h	l1	R/L
C4 ADE-20L	40	35.0	54.0	25.00	20.0	67.00	L
C4 ADE-20R	40	35.0	54.0	25.00	20.0	67.00	R
C5 ADE-20L	50	35.0	60.0	20.00	20.0	67.00	L
C5 ADE-20R	50	35.0	60.0	20.00	20.0	67.00	R

Use the tools with "AD" suffix. Regular tools should be shortened.
