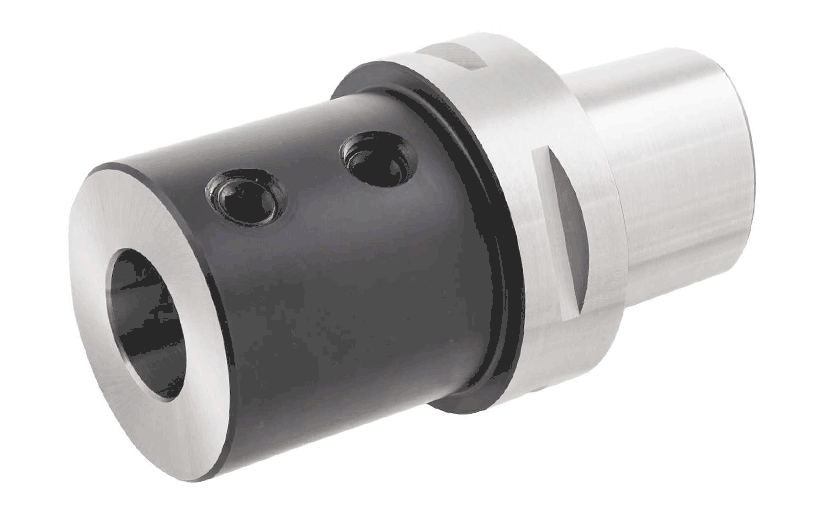

| C#-ADI : Holders for boring bars with CAMFIX (ISO 26623-1 standard) exchangeable shanks. |
|
|
|
|
|

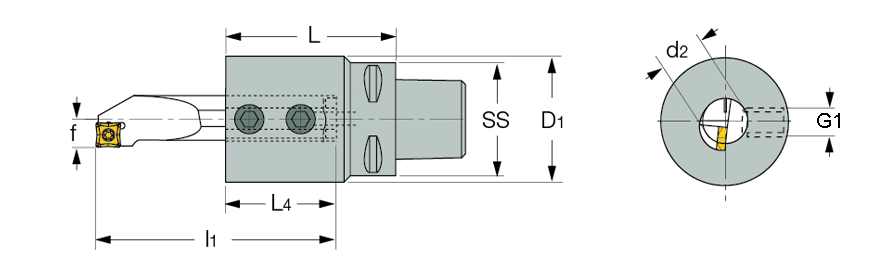

| Designation |
SS |
L |
L4 |
f |
d2 |
l1 |
D1 |
C4 ADI 25
|
40 |
80.00 |
60.0 |
17.00 |
25.00 |
120.00 |
60.0 |
|
C5 ADI 20
|
50 |
75.00 |
49.0 |
13.00 |
20.00 |
100.00 |
55.0 |
|
C5 ADI 25
|
50 |
85.00 |
60.0 |
17.00 |
25.00 |
120.00 |
60.0 |
|
|
|
 |
    |
|
|
|
