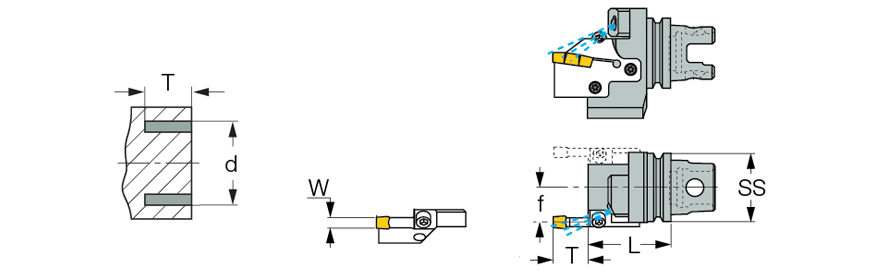

IM-GHAD-8 :  Holders for grooving, turning and facing adapters with ISO 26622-1(*) tapered shank.
 T= See specific adapter dimensions

COOLANT
  Designation
SS
L
f
W		 d
Range		 T
range
  IM50 GHAD-8  50  60.00  26.00  8.00  80-510  15-25
  IM63 GHAD-8  63  60.00  32.50  8.00  80-510  15-25

(*) Tools with orientation holes in the flange groove can be supplied on request
