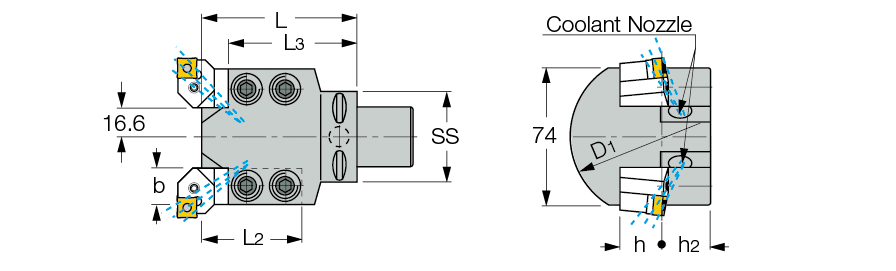

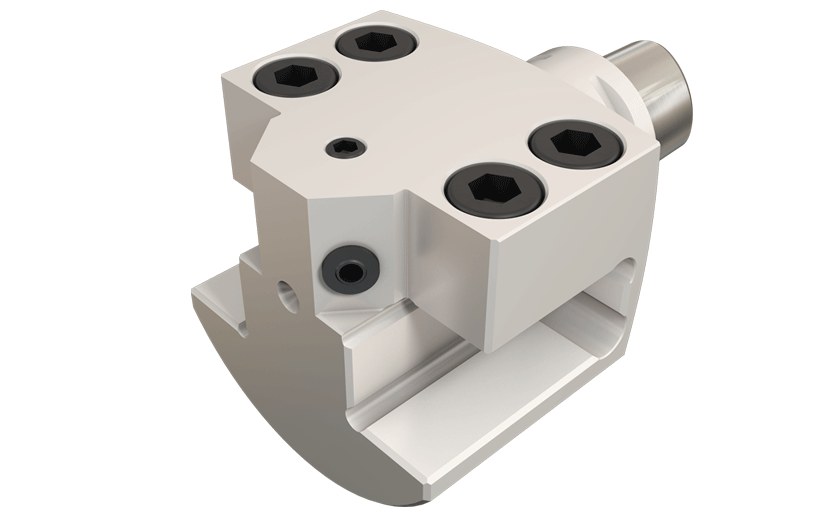

 C-ADES :  Holders for external shank tools compatible with COROMANT CAPTO® system. Cutting Conditions Machine Power
 The trademark COROMANT CAPTO is owned by Sandvik Intellectual Property AB

CAMFIX (COROMANT CAPTO®)
  Designation
S.s		 S.
Std.
F1
l2
L
L3
h1
f
l1
h
  C4 ADES-20  40  C4  41.6  98.0  85.00  71.00  20.0  25.00  67.00  20.0
  C5 ADES-20  50  C5  41.6  98.0  85.00  71.00  20.0  25.00  67.00  20.0
