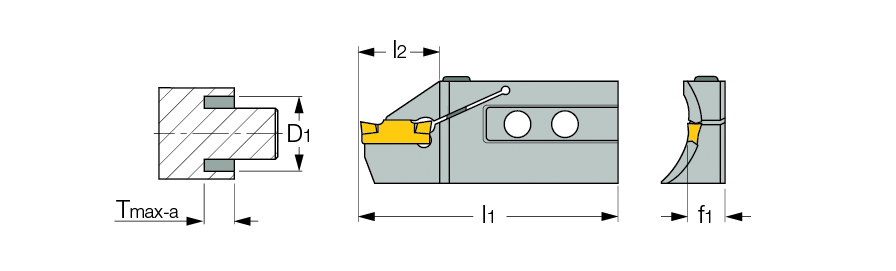

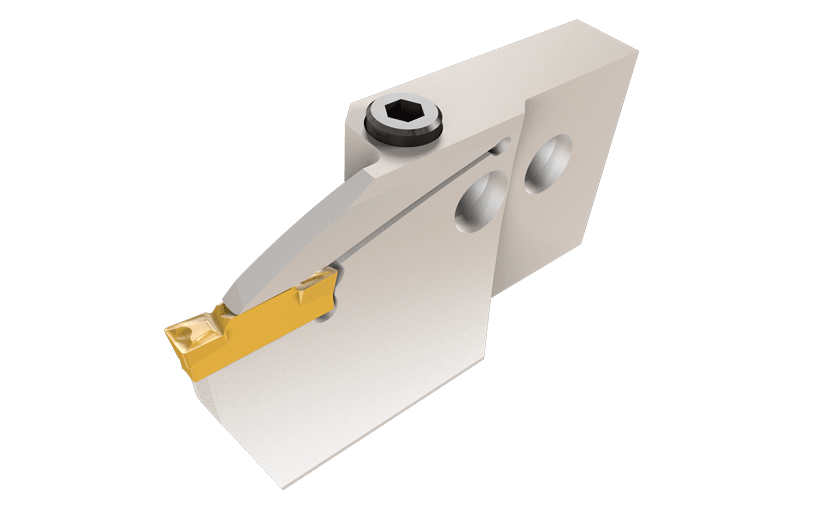

HFAER/L-4T :
Adaptors for external facing along shaft. Dmin. 12mm.
Right-hand shown
Left-hand shown
Designation
Tmax-a
W
D1
min
D1
max
l1
l3
f1
R/L
HFAEL 40-4T20
20.0
4.00
40.0
48.0
66.50
32.5
11.6
L
HFAEL 48-4T20
20.0
4.00
48.0
60.0
66.50
32.5
11.6
L
HFAER 40-4T20
20.0
4.00
40.0
48.0
66.50
32.5
11.6
R
HFAER 48-4T20
20.0
4.00
48.0
60.0
66.50
32.5
11.6
R
HFAEL 60-4T25
25.0
4.00
60.0
75.0
66.50
32.5
11.6
L
HFAEL 75-4T25
25.0
4.00
75.0
100.0
66.50
32.5
11.6
L
HFAER 60-4T25
25.0
4.00
60.0
75.0
66.50
32.5
11.6
R
HFAER 75-4T25
25.0
4.00
75.0
100.0
66.50
32.5
11.6
R
