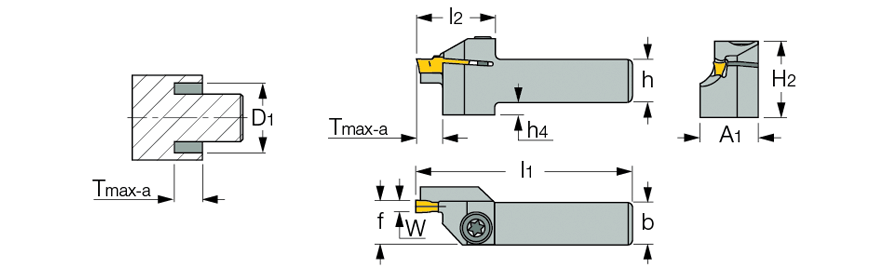

HGHR/L-3 :

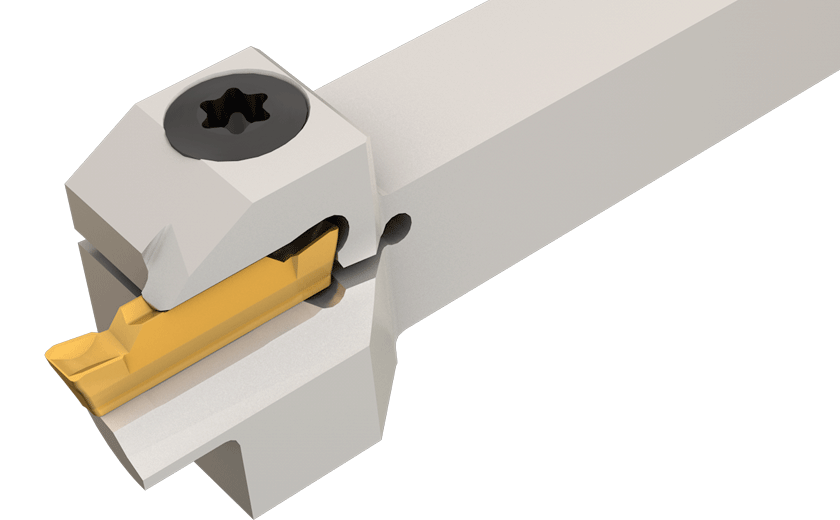

Integral holders for face grooving and turning Dmin. 12 mm.
Right-hand shown
Left-hand shown
Designation
W
Tmax-a
h
b
h4
f
D1
min
D1
max
l1
l2
H2
A1
R/L
HGHL 1010-12-3T6
3.00
6.00
10.0
10.0
2.0
9.5
12.0
16.0
120.00
19.0
19.0
13.70
L
HGHL 1010-16-3T6
3.00
6.00
10.0
10.0
2.0
9.5
16.0
25.0
120.00
19.0
19.0
12.80
L
HGHL 1212-12-3T6
3.00
6.00
12.0
12.0
-
11.0
12.0
16.0
120.00
19.0
19.0
15.70
L
HGHL 1212-16-3T6
3.00
6.00
12.0
12.0
-
11.0
16.0
25.0
120.00
19.0
19.0
14.80
L
HGHL 1616-12-3T6
3.00
6.00
16.0
16.0
-
15.0
12.0
16.0
120.00
19.0
21.0
19.70
L
HGHL 1616-16-3T6
3.00
6.00
16.0
16.0
-
15.0
16.0
25.0
120.00
19.0
21.0
18.80
L
HGHL 2020-12-3T6
3.00
6.00
20.0
20.0
-
20.0
12.0
16.0
120.00
19.0
25.0
24.00
L
HGHL 2020-16-3T6
3.00
6.00
20.0
20.0
-
20.0
16.0
25.0
120.00
19.0
25.0
24.00
L
HGHL 2525-12-3T6
3.00
6.00
25.0
25.0
-
25.0
12.0
16.0
120.00
19.0
30.0
29.00
L
HGHL 2525-16-3T6
3.00
6.00
25.0
25.0
-
25.0
16.0
25.0
120.00
19.0
30.0
29.00
L
HGHR 1010-12-3T6
3.00
6.00
10.0
10.0
2.0
9.5
12.0
16.0
120.00
19.0
19.0
13.70
R
HGHR 1010-16-3T6
3.00
6.00
10.0
10.0
2.0
9.5
16.0
25.0
120.00
19.0
19.0
12.80
R
HGHR 1212-12-3T6
3.00
6.00
12.0
12.0
-
11.0
12.0
16.0
120.00
19.0
19.0
15.70
R
HGHR 1212-16-3T6
3.00
6.00
12.0
12.0
-
11.0
16.0
25.0
120.00
19.0
19.0
14.80
R
HGHR 1616-12-3T6
3.00
6.00
16.0
16.0
-
15.0
12.0
16.0
120.00
19.0
21.0
19.70
R
HGHR 1616-16-3T6
3.00
6.00
16.0
16.0
-
15.0
16.0
25.0
120.00
19.0
21.0
18.80
R
HGHR 2020-12-3T6
3.00
6.00
20.0
20.0
-
20.0
12.0
16.0
120.00
19.0
25.0
24.00
R
HGHR 2020-16-3T6
3.00
6.00
20.0
20.0
-
20.0
16.0
25.0
120.00
19.0
25.0
24.00
R
HGHR 2525-12-3T6
3.00
6.00
25.0
25.0
-
25.0
12.0
16.0
120.00
19.0
30.0
29.00
R
HGHR 2525-16-3T6
3.00
6.00
25.0
25.0
-
25.0
16.0
25.0
120.00
19.0
30.0
29.00
R
For insert clamping instructions and for widening limitations, click on "More Info".
Use HGN and GRIP inserts with right-hand toolholders only and HGPL inserts with left-hand toolholders.
