3M AXK-CF-13 :  MILL2000, Heavy duty, extended flute endmills with CLICKFIT shanks carrying 3M AXKT 1304... inserts with dovetail section shape, helical cutting edges and positive rake angle. High durability in rough applications.


Shouldering Slotting COOLANT

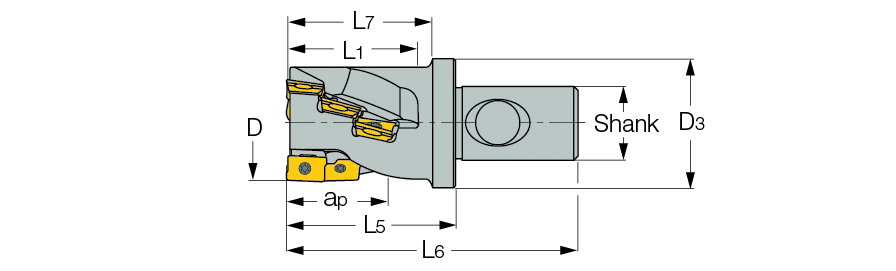

  Designation
D
ap
Flute
Z
L1
L7
L5
L6
D3
Shank
Kg
  3M AXK D25-25-2-CF4-13  25.00  24.50  2  4  34.0  40.00  48.00  90.00  44.00  CF4  0.45
  3M AXK D32-36-2-CF4-13  32.00  36.50  2  6  44.0  50.00  58.00  100.00  44.00  CF4  0.43
  3M AXK D40-36-3-CF4-13  40.00  36.50  3  9  47.0  50.00  58.00  100.00  44.00  CF4  0.62
  3M AXK D40-48-4-CF4-13  40.00  48.50  4  16  57.0  60.00  68.00  110.00  44.00  CF4  0.58

Reduce feed by 50% during engagement and exit from the workpiece. This practice will substantially increase insert life.
For adaptation click on "More Info"
