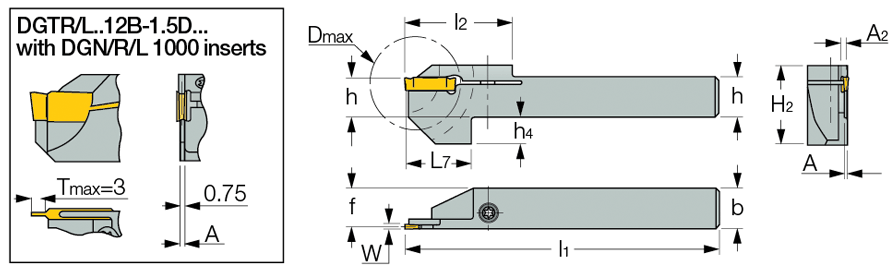

| DGTR/L-B-D-TR : Integral shank, reinforced parting and grooving tools for double-ended DO-GRIP inserts. |
|
|
|
|
|
| Designation |
W
min |
W
max |
h |
b |
A |
A2 |
f |
l1 |
l2 |
L7 |
D
max |
H2 |
h4 |
R/L |
|
DGTL 12B-1.4D20-TR12
|
1.40 |
1.40 |
12.0 |
12.0 |
1.00 |
2.3 |
11.5 |
95.00 |
32.5 |
20.00 |
20.0 |
23.7 |
8.0 |
L |
|
DGTR 12B-1.4D20-TR12
|
1.40 |
1.40 |
12.0 |
12.0 |
1.00 |
2.3 |
11.5 |
95.00 |
32.5 |
20.00 |
20.0 |
23.7 |
8.0 |
R |
|
DGTL 12B-1.5D20-TR12
|
1.00 |
1.50 |
12.0 |
12.0 |
1.20 |
2.3 |
11.3 |
95.00 |
32.5 |
20.00 |
20.0 |
23.7 |
8.0 |
L |
|
DGTR 12B-1.5-D20-TR12
|
1.00 |
1.50 |
12.0 |
12.0 |
1.20 |
2.3 |
11.3 |
95.00 |
32.5 |
20.00 |
20.0 |
23.7 |
8.0 |
R |
|
Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width tools!!
For Traub machines, model TNL 12/7
|
 |
    |
