F90LN-FR CA11 :  Adjustable 90° face mills (used mainly for PCD/CBN inserts)


Facing Shouldering Slotting COOLANT

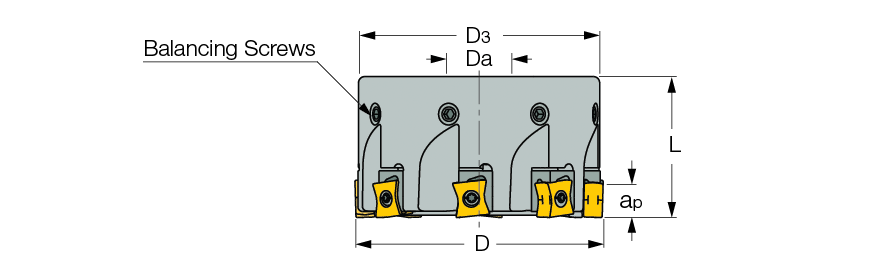

  Designation
D
Z
L
Da
apPlease refer to PCD and CBN specific inserts D.O.C. recomendations.
ArborFor adaptation click on More Info		 RPM
max
Kg
  F90LN D050-03-16SFR CA11  50.00  3  40.00  16.00  5.00  A  24700  0.40
  F90LN D050-04-16SFR CA11  50.00  4  40.00  16.00  5.00  A  24700  0.39
  F90LN D063-04-22AFR CA11  63.00  4  45.00  22.00  5.00  B  22000  0.29
  F90LN D063-06-22AFR CA11  63.00  6  45.00  22.00  5.00  B  22000  0.30
  F90LN D080-05-27AFR CA11  80.00  5  45.00  27.00  5.00  B  19000  0.48
  F90LN D080-08-27AFR CA11  80.00  8  45.00  27.00  5.00  B  19000  0.49
  F90LN D100-06-32AFR CA11  100.00  6  55.00  32.00  5.00  B  15500  0.94
  F90LN D100-10-32AFR CA11  100.00  10  55.00  32.00  5.00  B  15500  0.95
  F90LN D125-08-40AFR CA11  125.00  8  63.00  40.00  5.00  B  13800  1.72
  F90LN D125-12-40AFR CA11  125.00  12  63.00  40.00  5.00  B  13800  1.75
  F90LN D160-14-40AFR CA11  160.00  14  63.00  40.00  5.00  C  12200  3.02

The tool bodies are made from aluminum (AFR) and the 50 mm tools are made from steel (SFR).
For assembly and adjustment instructions, click on "More Info"
