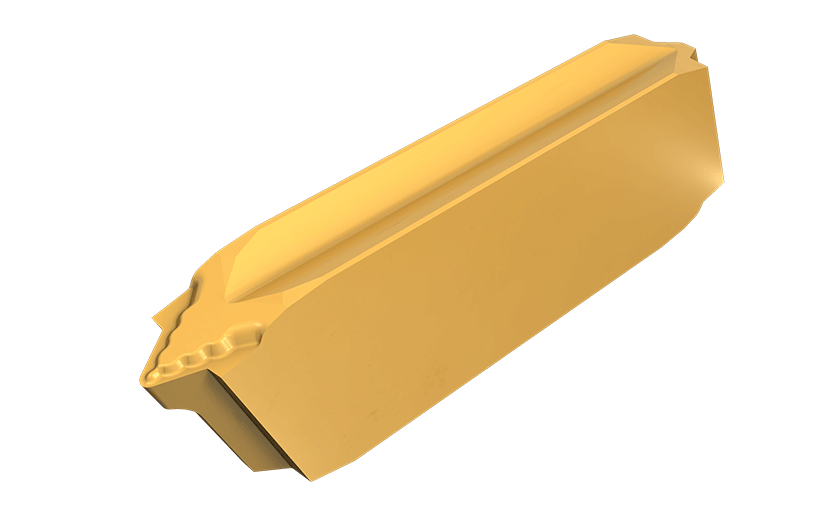

TIP-P-UN :  Precision ground, American UN (UNC,UNF,UNEF), full profile, double-ended, external threading inserts with a chipformer. Used for general applications.


Threading (Ext.)
  Designation
W
R
R±toler
TPI
  Grade
  TIP 2P32-UN  2.40  0.10  0.030  32.0 IC08 IC908
  TIP 2P28-UN  2.40  0.11  0.030  28.0 IC08 IC908
  TIP 2P24-UN  2.40  0.13  0.030  24.0 IC08 IC908
  TIP 2P20-UN  2.40  0.16  0.030  20.0 IC08 IC908
  TIP 2P18-UN  2.40  0.18  0.030  18.0 IC08 IC908
  TIP 2P16-UN  2.40  0.20  0.030  16.0 IC08 IC908
  TIP 2P14-UN  2.40  0.23  0.030  14.0 IC08 IC908
  TIP 2P13-UN  2.40  0.25  0.030  13.0 IC08 IC908
  TIP 2P12-UN  2.40  0.27  0.030  12.0 IC08 IC908
  TIP 4P11-UN  4.00  0.30  0.030  11.0 IC908
  TIP 4P10-UN  4.00  0.33  0.050  10.0 IC808 IC908
  TIP 4P08-UN  4.00  0.41  0.050  8.0 IC908

(a) TIP inserts are 1.6 mm longer than GIP in the same pocket.
Toolholder seat needs to be modified according to insert profile to ensure clearance.
