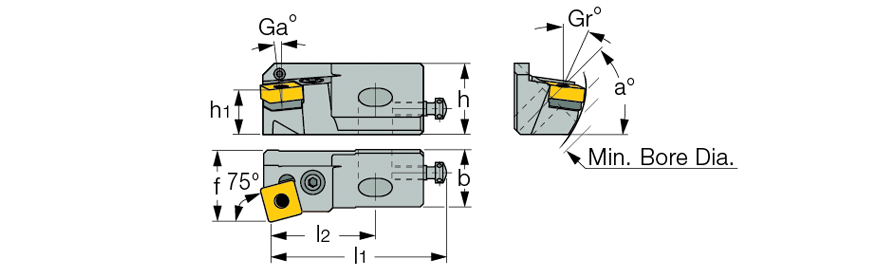

PSKNR/L-CA :
75° lead angle cartridges for negative square inserts.
Right-hand shown
Designation
h
h1
b
l1
l2
f
D
min
Ga°
Gr°
a°
R/L
PSKNR 12CA-12
20.0
12.0
20.0
55.00
35.0
20.0
50.00
-6
-8
20
R
PSKNL 16CA-12
25.0
16.0
20.0
63.00
38.0
25.0
60.00
-4
-8
45
L
PSKNR 16CA-12
25.0
16.0
20.0
63.00
38.0
25.0
60.00
-4
-8
45
R
