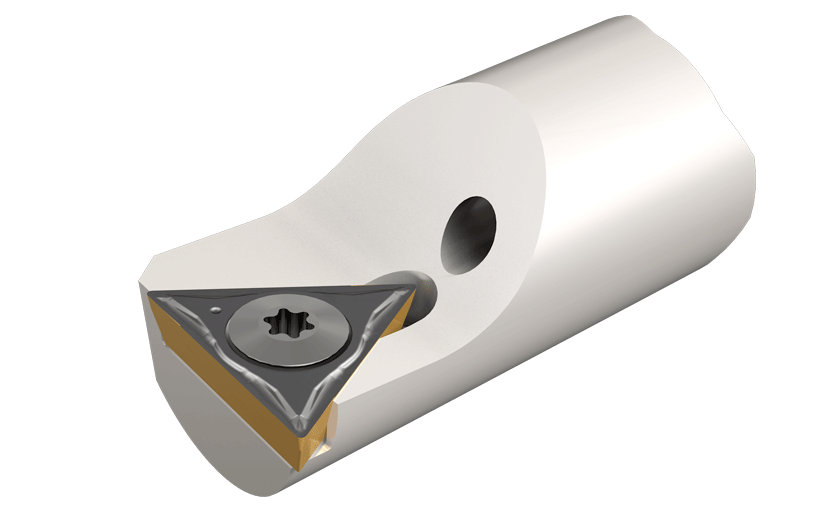

E-STFPR/L-HEAD : Interchangeable screw clamped boring heads for positive 11° clearance triangular inserts, used on a carbide bar.

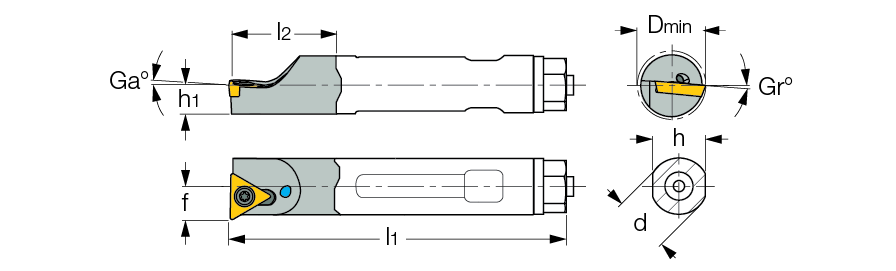

Right-hand shown

Designation	d	l1	l2	h	h1	f	Ga°	Gr°	D min	R/L
E12 STFPL-11 HEAD	12.00	179.00	24.8	11.0	5.5	6.8	4	-6	13.00	L
E12 STFPR-11 HEAD	12.00	179.00	24.8	11.0	5.5	6.8	4	-6	13.00	R
E16 STFPR-11 HEAD	16.00	200.00	37.0	15.0	8.0	8.8	4	-6	20.00	R
