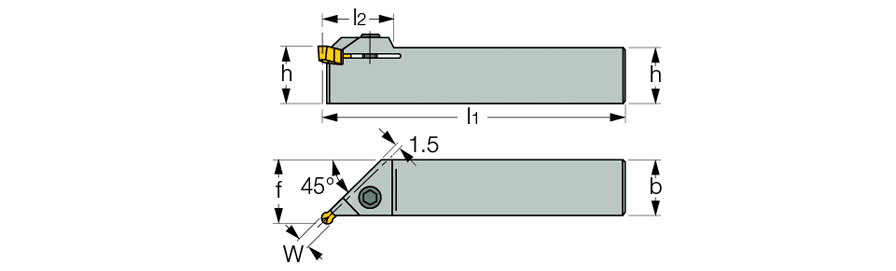

| GHMUR/L : CUT-GRIP external holders for 45° undercutting. |
|
|
|
|
|
| Designation |
W
max |
h |
b |
l1 |
l2 |
f |
R/L |
|
GHMUL 16
|
4.80 |
16.0 |
16.0 |
112.00 |
25.0 |
19.0 |
L |
|
GHMUR 16
|
4.80 |
16.0 |
16.0 |
112.00 |
25.0 |
19.0 |
R |
|
GHMUL 20
|
6.40 |
20.0 |
20.0 |
122.00 |
25.0 |
23.0 |
L |
|
GHMUR 20
|
6.40 |
20.0 |
20.0 |
122.00 |
25.0 |
23.0 |
R |
|
GHMUL 25
|
6.40 |
25.0 |
25.0 |
137.00 |
25.0 |
28.0 |
L |
|
GHMUR 25
|
6.40 |
25.0 |
25.0 |
137.00 |
25.0 |
28.0 |
R |
|
|
For D>100 mm, GIP/GIF inserts can be used (clearance types UN, D or G are not required).
|
 |
    |
