PICCO-MFT :
Solid carbide tools, for drilling, facing, int. and ext. turning and threading on Swiss and small CNC machines. Part of the PASSPORT system.

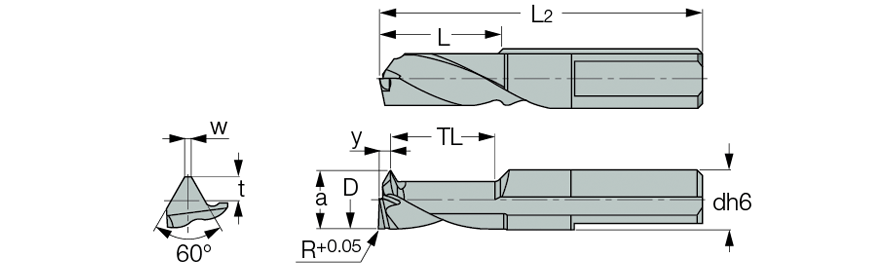

Right-hand shown
Designation
D
min
Pmin
Pmax
t
a
w
L
TL
L2
Y
d
R
R/L
Grade
PICCO L-MFT60 6-4 L08
4.00
0.50
0.75
0.46
3.90
0.06
8.0
7.3
30.0
1.3
6.00
0.10
L
IC908
PICCO L-MFT60 6-4 L12
4.00
0.50
0.75
0.46
3.90
0.06
12.0
11.6
34.0
1.2
6.00
0.20
L
IC908
PICCO R-MFT60 6-4 L08
4.00
0.50
0.75
0.46
3.90
0.06
8.0
7.3
30.0
1.3
6.00
0.10
R
IC908
PICCO R-MFT60 6-4 L12
4.00
0.50
0.75
0.46
3.90
0.06
12.0
11.6
34.0
1.2
6.00
0.20
R
IC908
PICCO L-MFT60 6-5 L10
5.00
0.50
1.00
0.61
4.90
0.06
10.0
9.0
32.0
1.4
6.00
0.10
L
IC908
PICCO L-MFT60 6-5 L15
5.00
0.50
1.00
0.61
4.90
0.06
15.0
14.4
37.0
1.4
6.00
0.30
L
IC908
PICCO R-MFT60 6-5 L10
5.00
0.50
1.00
0.61
4.90
0.06
10.0
9.0
32.0
1.4
6.00
0.10
R
IC908
PICCO R-MFT60 6-5 L15
5.00
0.50
1.00
0.61
4.90
0.06
15.0
14.4
37.0
1.4
6.00
0.30
R
IC908
PICCO L-MFT60 6-6 L12
6.00
0.50
1.00
0.61
5.90
0.06
12.0
11.0
34.0
1.4
6.00
0.10
L
IC908
PICCO L-MFT60 6-6 L18
6.00
0.50
1.00
0.61
5.90
0.06
18.0
17.3
43.0
1.4
6.00
0.30
L
IC908
PICCO R-MFT60 6-6 L12
6.00
0.50
1.00
0.61
5.90
0.06
12.0
11.0
34.0
1.4
6.00
0.10
R
IC908
PICCO R-MFT60 6-6 L18
6.00
0.50
1.00
0.61
5.90
0.06
18.0
17.3
43.0
1.4
6.00
0.30
R
IC908
PICCO L-MFT60 8-7 L14
7.00
0.75
1.25
0.76
6.90
0.09
14.0
13.0
41.0
1.5
8.00
0.10
L
IC908
PICCO L-MFT60 8-7 L21
7.00
0.75
1.25
0.76
6.90
0.09
21.0
20.0
55.0
1.5
8.00
0.30
L
IC908
PICCO R-MFT60 8-7 L14
7.00
0.75
1.25
0.76
6.90
0.09
14.0
13.0
41.0
1.5
8.00
0.10
R
IC908
PICCO R-MFT60 8-7 L21
7.00
0.75
1.25
0.76
6.90
0.09
21.0
20.0
55.0
1.5
8.00
0.30
R
IC908
PICCO L-MFT60 8-8 L16
8.00
0.90
1.50
0.92
7.90
0.11
16.0
15.0
43.0
1.5
8.00
0.10
L
IC908
PICCO L-MFT60 8-8 L24
8.00
0.90
1.50
0.92
7.90
0.11
24.0
23.0
57.0
1.5
8.00
0.30
L
IC908
PICCO R-MFT60 8-8 L16
8.00
0.90
1.50
0.92
7.90
0.11
16.0
15.0
43.0
1.5
8.00
0.10
R
IC908
PICCO R-MFT60 8-8 L24
8.00
0.90
1.50
0.92
7.90
0.11
24.0
23.0
51.0
1.5
8.00
0.30
R
IC908
Applications: Drilling; face turning; internal chamfering; internal turning\boring; internal profiling; external chamfering; external turning; internal and external 60° threading (right- and left-hand).
