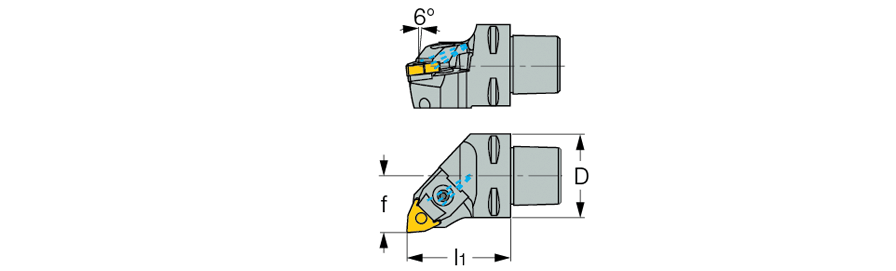

C#-MULNR/L-MW :  MULTI-WEDGE toolholders for 80° rhombic, trigon and square inserts with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks.
 Right-hand shown

Ext. 80° diamond 95° approach Ext. 80° trigon 95 approach Ext. 90° square 75° approach ISO 26623-1 (CAMFIX) MULNR/L-MW COOLANT
  Designation
SS
f
l1
R/L
  C4 MULNL 27050-12MW  40  1.06  1.969  L
  C4 MULNR 27050-12MW  40  1.06  1.969  R
  C5 MULNL 35060-12MW  50  1.38  2.362  L
  C6 MULNL-45065-12MW  63  1.77  2.559  L
  C6 MULNR-45065-12MW  63  1.77  2.559  R

Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately.
RH wedge for RH tool.
LH wedge for LH tool. For other wedges see more info.
