IM-MULNR/L-MW :  MULTI-WEDGE lock, toolholders with ISO 26622-1 tapered shanks for negative 80° rhombic, trigon and square inserts.
 Right-hand shown

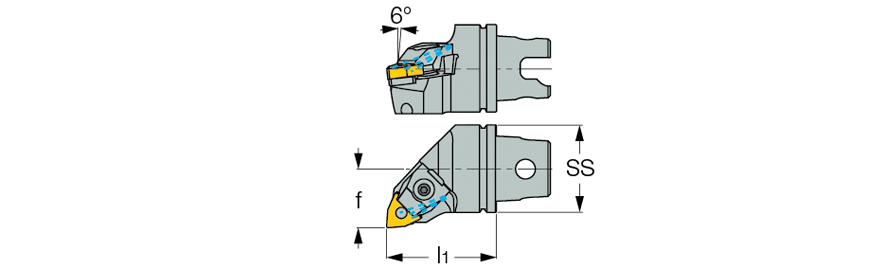

Ext. 80° diamond 95° approach Ext. 80° trigon 95 approach Ext. 90° square 75° approach ISO 26622-1 (IM) COOLANT MULNR/L-MW
  Designation
SS
f
l1
R/L
Insert
  IM40 MULNL-12MW  40  1.06  1.969  L  W/C/SNMG 43..
  IM50 MULNL-12MW  50  1.38  2.362  L  W/C/SNMG 43..
  IM50 MULNR-12MW  50  1.38  2.362  R  W/C/SNMG 43..

Tools with orientation holes in the flange groove can be supplied on request
