ADJ BT :  FINEFIT, Center alignment shanks and bases with BT MAS-403 AD/B tapered shanks (For specially tailored toolholders).


TAPER HARDNESS 58-60 SURFACE FINISH N5 COOLANT

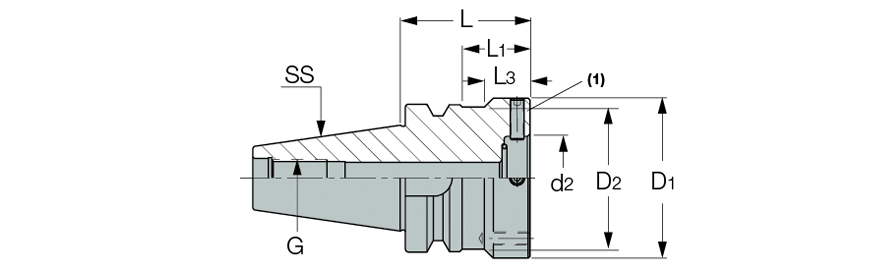

  Designation
SS
L
L1
L3
D1
d2
D2
G
Kg
  ADJ BT40 D70  40  55.00  28.0  18.00  70.0  35.00  62.50  M16  1.56
  ADJ BT50 D70  50  70.00  32.0  -  70.0  35.00  -  M24  4.34

(1) Use 4 mm hex key for screw adjustment.
Add B to the designation for coolant through flange option.
