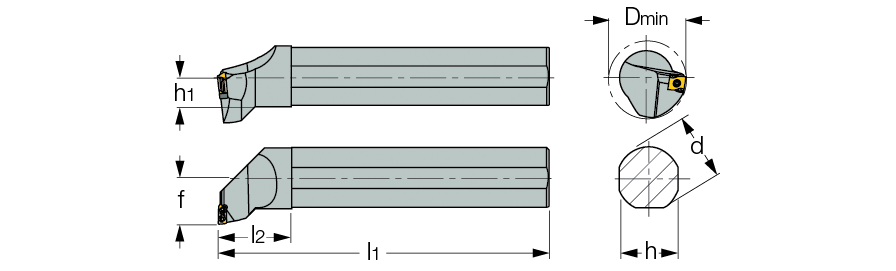

S-SLANR/L-TANG :  Boring bars for LNMX tangentially screw clamped insert with 4 cutting edges. Used for high metal removal rates.
 Right-hand shown
 Left-hand shown
Int. tangential 93° approach
  Designation
d
l1
l2
h
h1
f		 D
min
Ga°
Gr°
  S25T SLANL-11 TANG  25.00  300.00  40.0  23.0  12.5  17.0  53.00  -6  -15
  S25T SLANR-11 TANG  25.00  300.00  40.0  23.0  12.5  17.0  53.00  -6  -15
  S32U SLANL-11 TANG  32.00  350.00  50.0  30.0  16.0  22.0  53.00  -6  -15
  S32U SLANR-11 TANG  32.00  350.00  45.0  30.0  16.0  22.0  53.00  -6  -15
  S40V SLANL-11 TANG  40.00  400.00  60.0  37.0  20.0  27.0  53.00  -6  -15
  S40V SLANR-11 TANG  40.00  400.00  60.0  37.0  20.0  27.0  53.00  -6  -15
  S50U SLANL-15 TANG  50.00  350.00  60.0  47.0  25.0  37.0  85.00  -8  -10
  S50U SLANR-15 TANG  50.00  350.00  60.0  47.0  25.0  37.0  85.00  -8  -10
